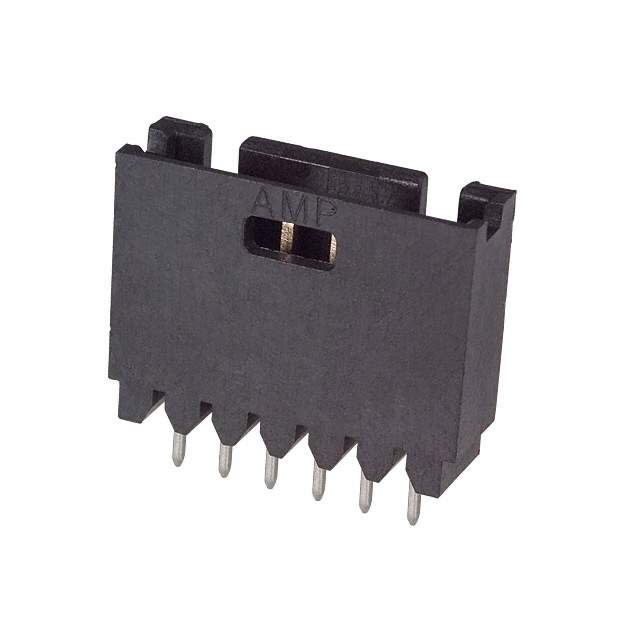

5-102202-3 Real Image
Same model may have multiple batches, images only for reference.

5-102202-3

Part No 5-102202-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod II
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.589" (14.96mm)
Insulation Height 0.549" (13.94mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 102202
Standard Package 29
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1348829-5-102202-3
Ultra Librarian 3D Model Ultra Librarian 5-102202-3 CAD Model

Description

The AMPMODU Mod II series header connector is a male pin connector with 6 positions and 1 row, loaded with all positions.

  • Series: AMPMODU Mod II
  • Positions: 6
  • Rows: 1
  • Contact Material: Brass
  • Contact Plating: Gold
  • Current Rating: 3A
  • Fastening Type: Push-Pull
  • Mounting Type: Through Hole
  • Type: Shrouded 4 Wall
  • Pitch-Mating: 0.100" (2.54mm)
  • Insulation Color: Black
  • Contact Length Post: 0.130" (3.30mm)
  • Insulation Height: 0.549" (13.94mm)
  • Contact Shape: Square
  • Operating Temperature: -65°C ~ 105°C
  • Board/Cable Style: Board to Board or Cable
  • Package: Tube
  • Standard Package: 29
  • Insulation Material: Thermoplastic
