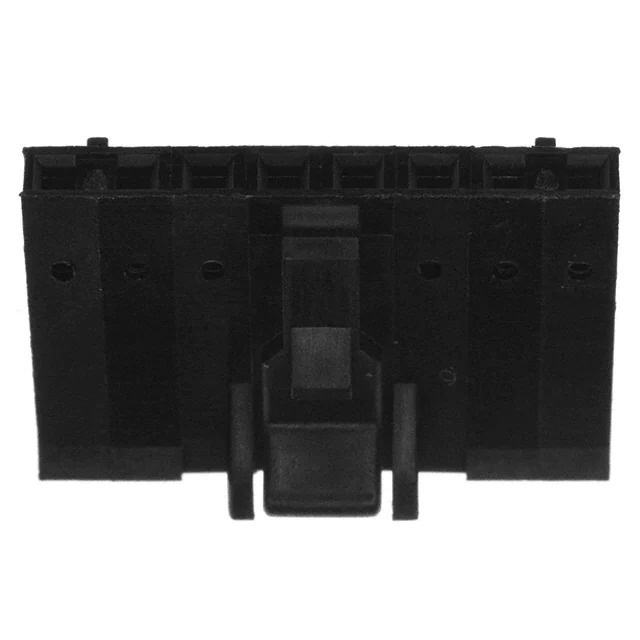

487526-7 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Housings
Mfr TE Connectivity AMP Connectors
Series -
Package Bulk
Product Status Active
Flat Flex Type FFC
Connector Type Housing for Female Contacts
Number of Positions 8
Number of Rows 1
Pitch 0.100" (2.54mm)
FFC, FCB Thickness 0.05-0.13mm
Locking Feature Latch Lock
Voltage Rating 300 V
Housing Material Thermoplastic
Features -
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1.5 A
Housing Color Black
Note Contacts Not Included
Wire Gauge -
Insulation Diameter -
Base Product Number 487526
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1362712-487526-7
Ultra Librarian 3D Model Ultra Librarian 487526-7 CAD Model

Description

The 1362712-487526-7 is a housing for female contacts in FFC (Flat Flexible) connectors manufactured by TE Connectivity AMP Connectors.

  • Application: FFC, FPC
  • Number of Positions: 8
  • Number of Rows: 1
  • Current Rating: 1.5A
  • Voltage Rating: 300V
  • Material: Thermoplastic
  • Temperature Range: -65°C to 105°C
  • Flammability Rating: UL94 V-0
  • Color: Black
  • Lock Type: Latch Lock
  • FFC, FPC Thickness: 0.05-0.13mm
  • Product Status: Active
