Same model may have multiple batches, images only for reference.

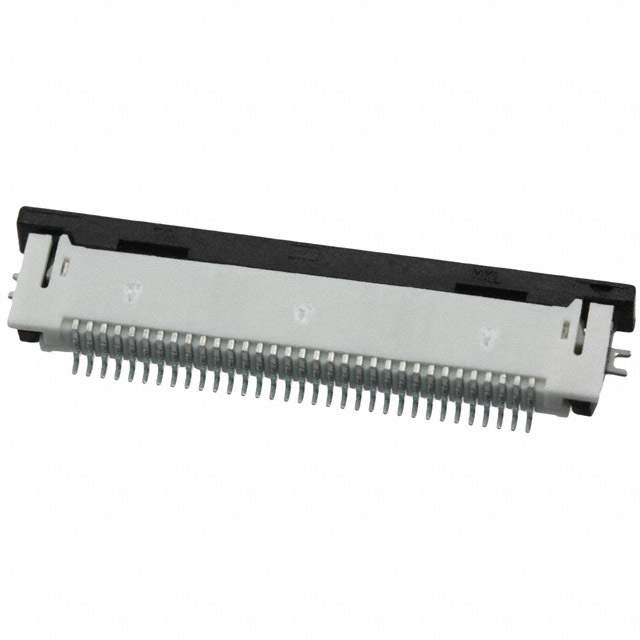

54132-3397 Real Image
Same model may have multiple batches, images only for reference.

54132-3397

Part No 54132-3397
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FPC Connector SKT 33 POS 0.5mm Solder RA SMD Easy-On™ T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Material Polyphenylene
Contact Material Bronze
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin MY
Current Rating 500 mA
Depth 5.6 mm
Flammability Rating UL94 V-0
Gender Receptacle
Housing Color Black
Housing Material Nylon
Length 22 mm
Max Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 33
Number of Contacts 33
Number of Positions 33
Number of Rows 1
Orientation Right Angle
Pitch 500 µm
Radiation Hardening No
RoHS Compliant
Termination Solder
Voltage Rating 50 V
Wire/Cable Type Straight
Win Source Part Number 1226697-54132-3397
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 54132-3397 CAD Model

Description

The FFC/FPC (Flat Flexible) Connector is a receptacle type connector with a right-angle orientation manufactured by Molex, LLC.

  • Contacts: 33
  • Pitch: 500 µm
  • Current Rating: 500 mA
  • Voltage Rating: 50 V
  • Housing Material: Nylon
  • Actuator Material: Polyphenylene
  • Contact Material: Bronze
  • Contact Plating: Tin
  • Contact Resistance: 20 mΩ
  • Flammability Rating: UL94 V-0
  • Mounting: Surface mountable
  • Depth: 5.6 mm
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40 °C
  • Maximum Operating Temperature: 85 °C
