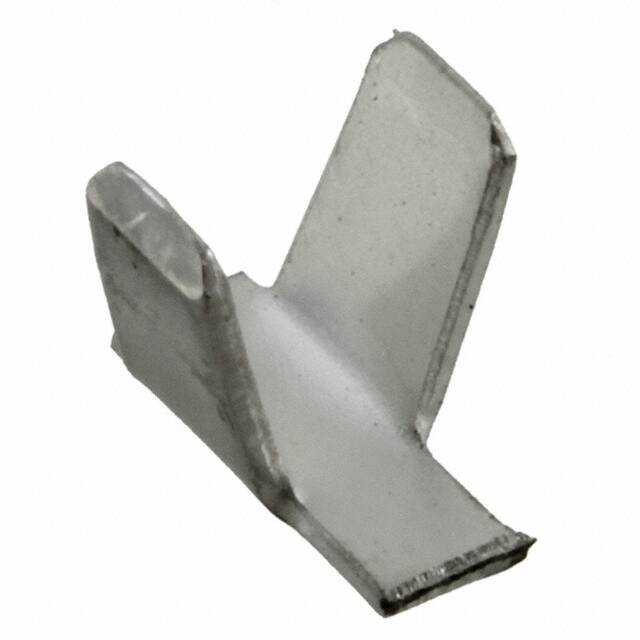

485020-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Wire Splice Connectors
Mfr TE Connectivity AMP Connectors
Series -
Package Tape & Reel (TR)
Product Status Active
Terminal Type Crimpband, Open Band
Number of Wire Entries Varies by Wire Size
Termination Crimp
Wire Gauge 6000-8000 CMA
Insulation Non-Insulated
Features -
Color -
Base Product Number 485020
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363834-485020-1
Ultra Librarian 3D Model Ultra Librarian 485020-1 CAD Model

Description

The TE Connectivity AMP Connectors Wire Splice Connectors are reliable and efficient terminals designed for wire splicing applications.

  • Category: Terminals - Wire Splice Connectors
  • Wire Gauge: 6000 to 8000 CMA
  • Insulation: Non-Insulated
  • Termination: Crimp
  • Terminal Type: Crimpband, Open Band
  • Status: Active
  • REACH: Vendor Undefined
