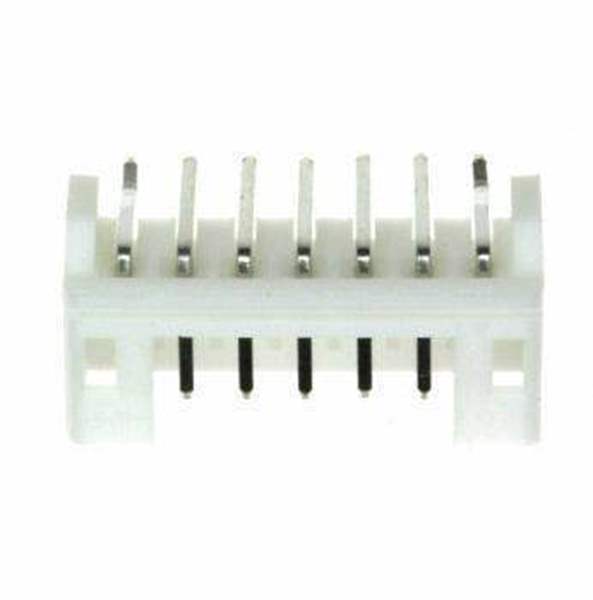

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Shrouding Shrouded - 3 Wall
Termination Press-Fit, Solder
Contact Length - Mating 0.138" (3.50mm)
Win Source Part Number WS1208560-440055-7
Ultra Librarian 3D Model Ultra Librarian 440055-7 CAD Model

Description

Connector Header Through Hole, Right Angle 7 position 0.079" (2.00mm)
