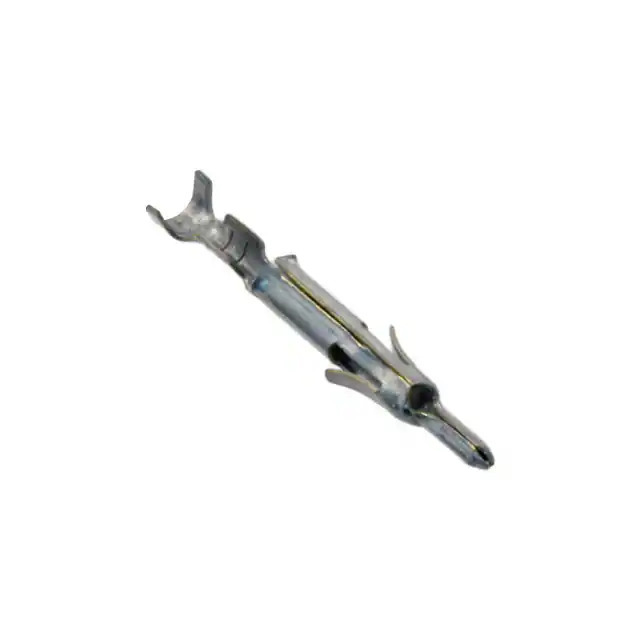

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Tape & Reel (TR)
Product Status Active
Type Stamped
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 26-30 AWG
Contact Material Brass
Contact Finish Tin
Contact Finish Thickness -
Base Product Number 770835
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362810-770835-1
Ultra Librarian 3D Model Ultra Librarian 770835-1 CAD Model

Description

The TE Connectivity AMP Connectors Mini-Universal MATE-N-LOK Pin is a versatile component used in connectors and interconnects.

  • Contact Type: Stamped
  • Wire Gauge: 26-30 AWG
  • Termination: Crimp
  • Contact Finish: Tin
  • Contact Material: Brass
  • Series: Mini-Universal MATE-N-LOK
  • Product Status: Active
  • Packaging: Tape & Reel
  • HTSUS: 8536.90.4000
  • REACH: Compliant
