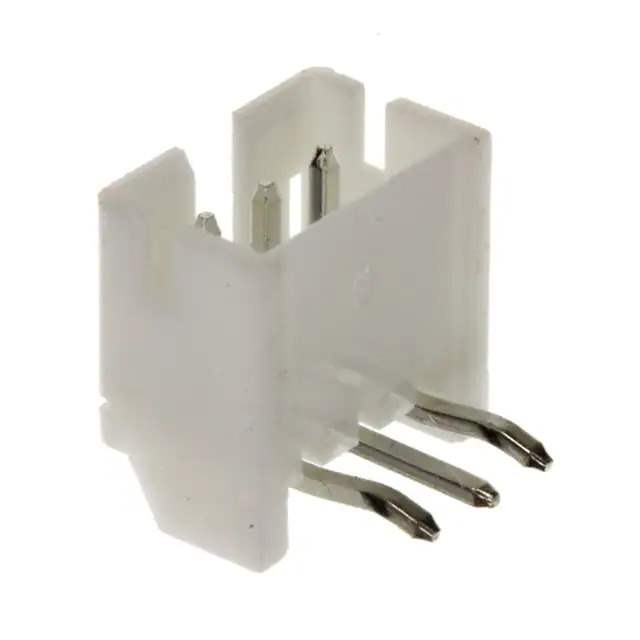

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series High Performance Interconnect (HPI)
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole, Right Angle
Termination Press-Fit, Solder
Contact Length - Mating 0.138" (3.50mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.195" (4.95mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 80.0µin (2.03µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Contact Finish Thickness - Post 80.0µin (2.03µm)
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 440055
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856060-440055-3
Ultra Librarian 3D Model Ultra Librarian 440055-3 CAD Model

Description

The 856060-440055-3 is a male pin header connector from TE Connectivity.

  • Series: High Performance Interconnect (HPI)
  • Positions: 3
  • Contact Material: Brass
  • Contact Finish: Tin
  • Termination: Press-Fit and Solder
  • Application: Board-to-Cable/Wire
  • Applications: Automotive, General Purpose, Industrial, and Medical
  • Pitch: 0.079" (2.00mm)
  • Contact Finish Thickness: 80.0µin (2.03µm)
  • Insulation Color: Natural
  • Design: Shrouded 3-Wall
  • Product Status: Active
