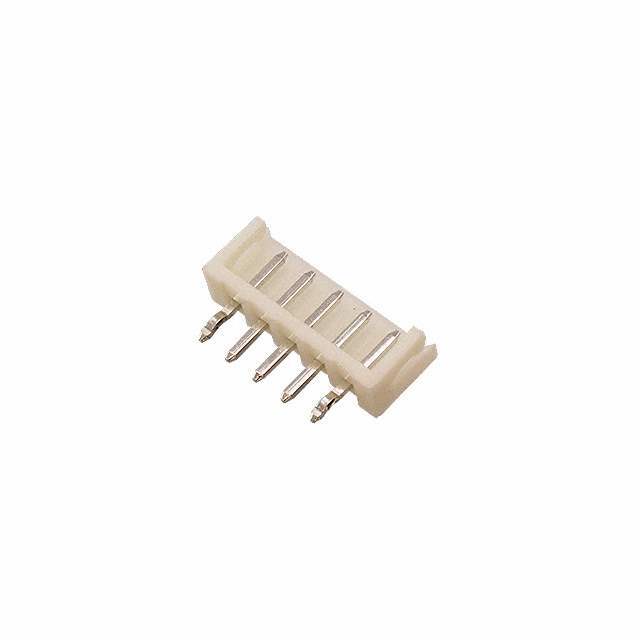

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1306870-440052-5
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Packaging  Bulk
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian 440052-5 CAD Model

Description

PCB Mount Header, Vertical, Wire-to-Board, 5 Position, 2.5 mm [. 098 in] Centerline, Partially Shrouded, Tin, Through Hole - Solder, Signal, Natural
