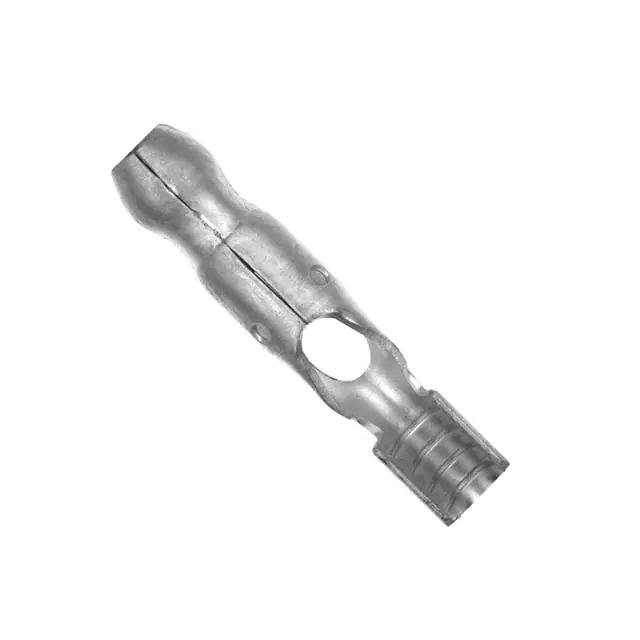

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Barrel, Bullet Connectors
Mfr TE Connectivity AMP Connectors
Series Shur-Plug
Package Tape & Reel (TR)
Product Status Active
Terminal Type Male, Pin (Plug)
Diameter - Barrel 0.180" (4.57mm)
Wire Gauge 10-14 AWG
Length - Overall 0.865" (21.97mm)
Length - Barrel 0.437" (11.10mm)
Insulation Non-Insulated
Termination Crimp
Features -
Contact Material Brass
Contact Finish Tin
Color -
Insulation Diameter -
Material - Insulation -
Base Product Number 42865
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363373-42865-3
Ultra Librarian 3D Model Ultra Librarian 42865-3 CAD Model

Description

The TE Connectivity AMP Connectors Shur-Plug is a barrel, bullet connector designed for general-purpose applications.

  • Terminal Gender: Male
  • Terminal Type: Plug
  • Contact Termination: Crimp
  • Contact Material: Brass
  • Contact Finish: Tin
  • Wire Gauge: 10-14 AWG
  • Packaging: Tape and Reel
  • Product Status: Active
  • HTSUS: 8536.90.4000
  • ECCN: EAR99
  • Insulation: Non-Insulated
