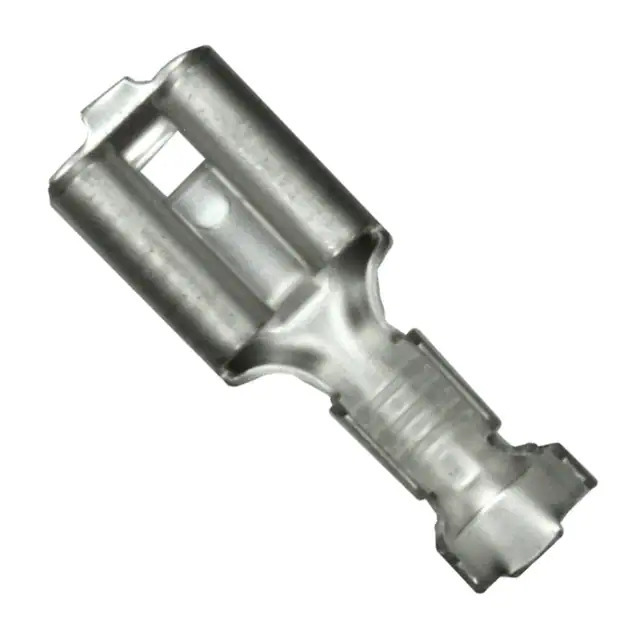

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.585" (14.86mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
Base Product Number 42617
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364872-42617-2
Ultra Librarian 3D Model Ultra Librarian 42617-2 CAD Model

Description

The TE Connectivity AMP Connectors Faston is a quick disconnect connector that is widely used in various applications.

  • Base Product Number: 42617
  • Product Status: Active
  • Category: Quick Disconnect Connectors
  • Packaging: Tape & Reel (TR)
  • MSL Level: 1 (Unlimited)
  • Wire Gauge Range: 16-20 AWG
  • Contact Finish: Tin
  • Terminal Material: Brass
  • Insulation: Non-Insulated
  • Length: 0.585" (14.86mm)
  • Tab Width: 0.187" (4.75mm)
