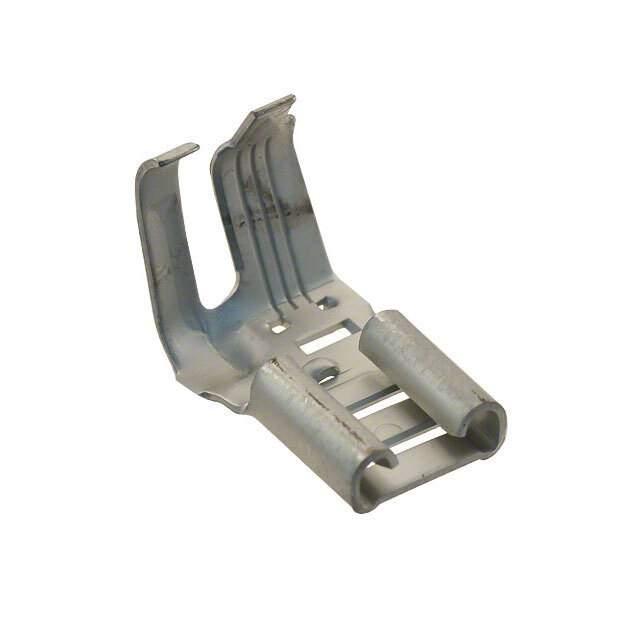

Same model may have multiple batches, images only for reference.

42563-8

Name: 42563-8
Brand: TE Connectivity
SKU: 1333643
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	42563-8
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN QC RCPT 10-12AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 10-12 AWG Crimp Connector Non-Insulated
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer	TE Connectivity AMP Connectors
Packaging	Reel - TR
Terminal Type	Angled - 90°, Flag
Gender	Female
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	0.305" (7.75mm)
Termination	Crimp
Wire Gauge	10-12 AWG
Insulation	Non-Insulated
Mounting	Free Hanging (In-Line), Right Angle
Contact Material	Phosphor Bronze
Contact Finish	Tin
Insulation Diameter	0.110" ~ 0.210" (2.79mm ~ 5.33mm)
Base Product Number	42563
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Other Part Number	A27669TR,425638,A27669CT,42563-8-ND,A27669,-42563-8-SI,A27669-ND,-42563-8-CSI
Standard Package	3,500
Win Source Part Number	1333643-42563-8
Ultra Librarian 3D Model	Ultra Librarian 42563-8 CAD Model

Description

The TE Connectivity AMP Connectors 1333643-42563-8 is a female terminal connector that is perfect for use in a variety of electronic applications.

Gender: Female
Packaging: Reel - TR
Termination: Crimp
Contact Finish: Tin
Wire Gauge: 10-12 AWG
Contact Material: Phosphor Bronze
Insulation: Non-insulated
Mounting: Free Hanging (In-Line), Right Angle
Terminal Type: Angled - 90°, Flag
Tab Width: 0.250" (6.35mm)
Tab Thickness: 0.032" (0.81mm)
Tab Length: 0.305" (7.75mm)
Insulation Diameter: 0.110" ~ 0.210" (2.79mm ~ 5.33mm)
Popularity: Medium
