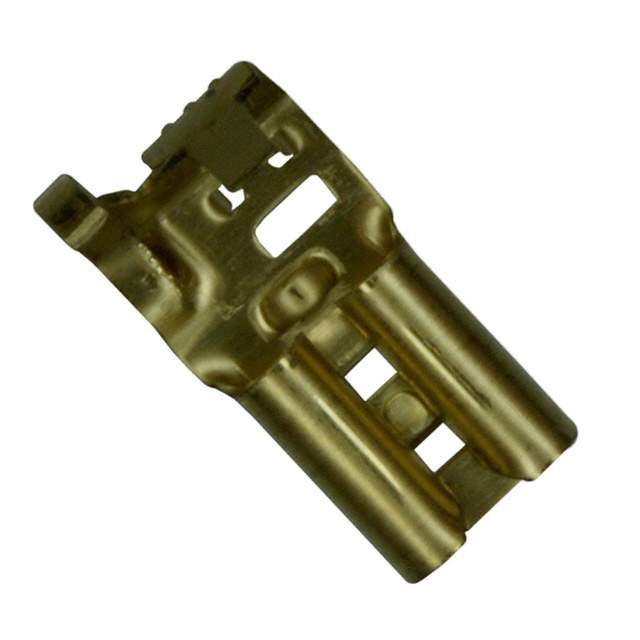

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line), Right Angle
Contact Material Brass
Insulation Diameter 0.110" ~ 0.170" (2.79mm ~ 4.32mm)
Base Product Number 42486
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 42486-1-ND,2266-42486-1TR,A27711TR,A27711,-42486-1-SI,A27711-ND,424861,A27711CT
Standard Package 6,000
Win Source Part Number 1333467-42486-1
Ultra Librarian 3D Model Ultra Librarian 42486-1 CAD Model

Description

The 1333467-42486-1 from TE Connectivity AMP Connectors is a low-popularity quick disconnect connector in a reel package.

  • Gender: female
  • Termination: crimp
  • Terminal Type: angled - 90 degree flag
  • Tab Width: 0.187 inches
  • Tab Thickness: 0.020 inches
  • Wire Gauges: 16-20 AWG
