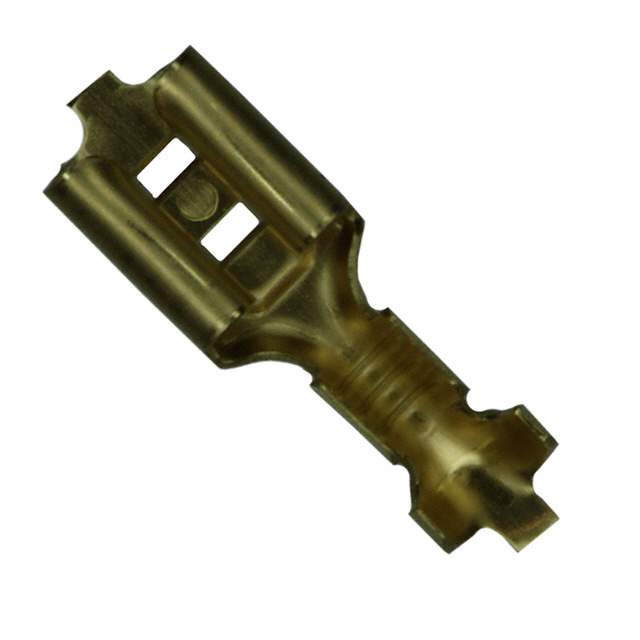

42452-1 Real Image
Same model may have multiple batches, images only for reference.

42452-1

Part No 42452-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 16-20AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 16-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.633" (16.08mm)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Insulation Diameter 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
Base Product Number 42452
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 2266-42452-1,-42452-1-CSI,A27700TR,A27700,A27700-ND,424521,A27700CT,42452-1-ND,-42452-1-SI
Standard Package 20,000
Win Source Part Number 1333528-42452-1
Ultra Librarian 3D Model Ultra Librarian 42452-1 CAD Model

Description

The 1333528-42452-1 is a female quick connect terminal from TE Connectivity AMP Connectors.

  • Contact Material: Brass
  • Wire Gauge: 16-20 AWG
  • Insulation: Non-Insulated
  • Insulation Diameter: 0.090" ~ 0.130" (2.29mm ~ 3.30mm)
