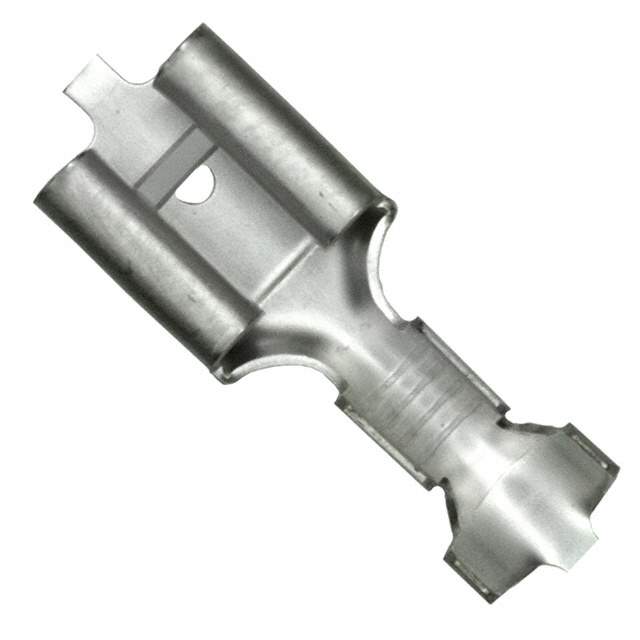

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Length - Overall 0.750" (19.05mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.120" ~ 0.170" (3.05mm ~ 4.32mm)
Base Product Number 42400
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names A27611TR,42400-2-ND,A27611-ND,A27611,424002,-42400-2-CSI,-42400-2-SI,A27611CT
Standard Package 10,000
Win Source Part Number 968407-42400-2
Ultra Librarian 3D Model Ultra Librarian 42400-2 CAD Model

Description

The TE Connectivity AMP Connectors 42400-2 is a female quick disconnect connector.

  • Series: Faston
  • Packaging: Tape & Reel and Cut Tape
  • Wire Gauge: 14-18 AWG
  • Tab Width: 0.250" (6.35mm)
  • Contact Material: Brass
  • Contact Finish: Tin
  • Insulated: Non-Insulated
  • Insulation Diameter: 0.120" ~ 0.170" (3.05mm ~ 4.32mm)
  • ECCN: EAR99
  • HTSUS: 8536.90.4000
