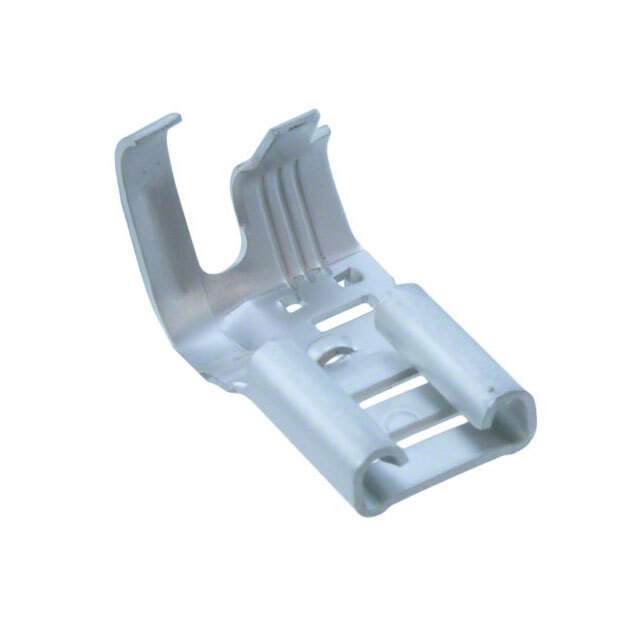

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.305" (7.75mm)
Termination Crimp
Wire Gauge 12-18 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line), Right Angle
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.110" ~ 0.210" (2.79mm ~ 5.33mm)
Base Product Number 4180
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -41802-SI,2266-41802,A27663,-41802-CSI,A27663TR,A27663-ND,A27663CT,41802-ND
Standard Package 4,000
Win Source Part Number 1333701-41802
Ultra Librarian 3D Model Ultra Librarian 41802 CAD Model

Description

TE Connectivity AMP Connectors' 1333701-41802 is a female quick connect terminal designed for high performance in a compact size.

  • Supply and Demand Status: Unlimited
  • Applications: Automotive, Consumer Electronics, and Industrial
  • Wire Gauge Range: 12-18 AWG
  • Tab Width: 0.250" (6.35mm)
  • Insulation: Non-Insulated
  • Terminal Type: 90-Degree Angled Flag
