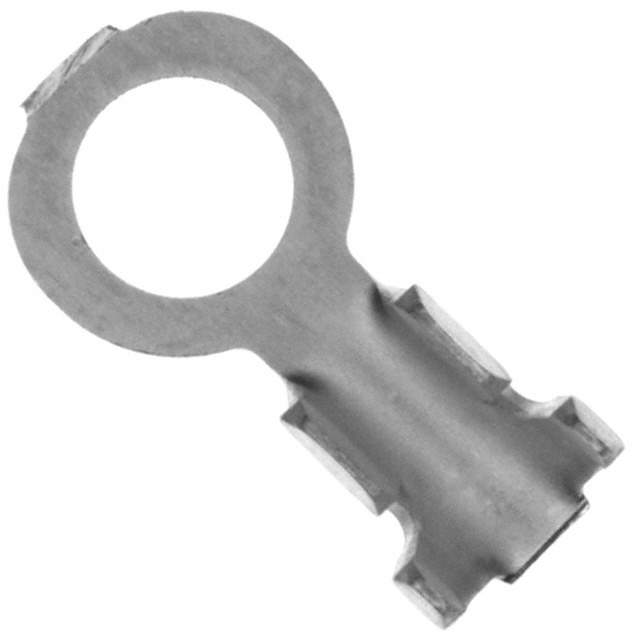

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Terminal Type Oval
Thickness 0.025" (0.64mm)
Width - Outer Edges 0.246" (6.25mm)
Length - Overall 0.467" (11.86mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.100" ~ 0.135" (2.54mm ~ 3.43mm)
Base Product Number 4147
Standard Package 25,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1333547-41472
Ultra Librarian 3D Model Ultra Librarian 41472 CAD Model

Description

The Ring Connectors are versatile electronic components from TE Connectivity.

  • Termination: Crimp
  • Wire Gauge: 16-20 AWG
  • Contact Finish: Tin
  • Package Quantity: 25,000 pieces
  • Terminal Type: Oval
  • Insulation: Non-Insulated
  • Thickness: 0.025"
  • Width: 0.246"
  • Length: 0.467"
