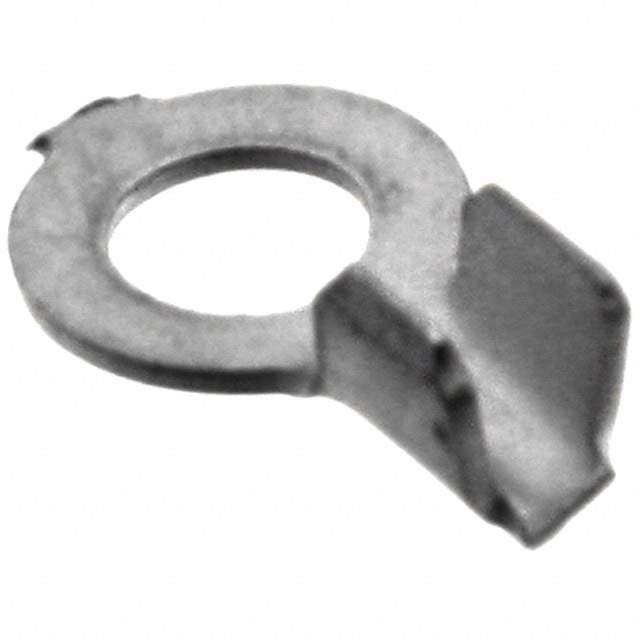

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Ring Connectors
Mfr TE Connectivity
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Terminal Type Circular
Stud/Tab Size 6 Stud
Thickness 0.020" (0.51mm)
Width - Outer Edges 0.260" (6.60mm)
Length - Overall 0.400" (10.16mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-20 AWG
Insulation Non-Insulated
Contact Material Brass
Contact Finish Tin
Base Product Number 4081
Standard Package 20,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1333634-40811
Ultra Librarian 3D Model Ultra Librarian 40811 CAD Model

Description

The 1333634-40811 is a circular ring connector terminal from TE Connectivity.

  • Category: Connectors and Interconnects > Terminals > Ring Connector
  • Termination: Crimp
  • Contact Material: Brass
  • Contact Finish: Tin
  • Package Quantity: 20,000 pieces
  • Wire Gauge: 16-20 AWG
  • Thickness: 0.020" (0.51mm)
  • Overall Length: 0.400" (10.16mm)
  • Width: 0.260" (6.60mm)
  • Insulation: Non-insulated
  • Mounting: Free Hanging (In-line)
