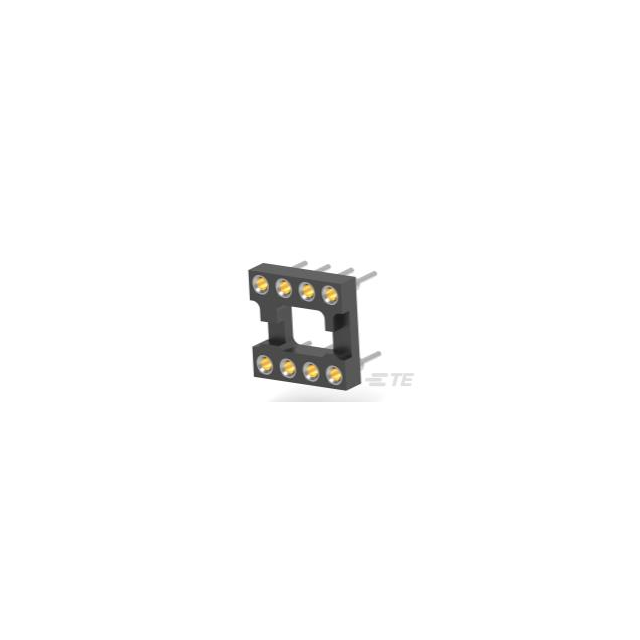

4-1571552-3 Real Image
Same model may have multiple batches, images only for reference.

4-1571552-3

Part No 4-1571552-3
Manufacturer TE Connectivity
Catalog Sockets for ICs, Transistors
Description CONN IC DIP SOCKET 8POS GOLD
Datasheet
4-1571552-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 8 (2 x 4)
Pitch - Mating 2.54mm
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20μin (0.51μm)
Contact Material - Mating Beryllium Copper
Mounting Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Gold
Contact Finish Thickness - Post 20μin (0.51μm)
Contact Material - Post Copper
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Temperature Range - Operating -55°C to 105°C
Termination Post Length 0.125" (3.18mm)
Material Flammability Rating UL94 V-0
Contact Resistance 10 mOhm
Win Source Part Number 056934-4-1571552-3
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian 4-1571552-3 CAD Model

Description

Product Features and Benefits

  • Compact size for space-saving applications
  • High conductivity materials for superior performance
  • Easy installation with minimal tools required

Applications and Projects

  • Consumer electronics
  • Home automation
  • Compact power supplies

The 4-1571552-3 is engineered for applications where space is at a premium, providing excellent contact performance in a small footprint.
