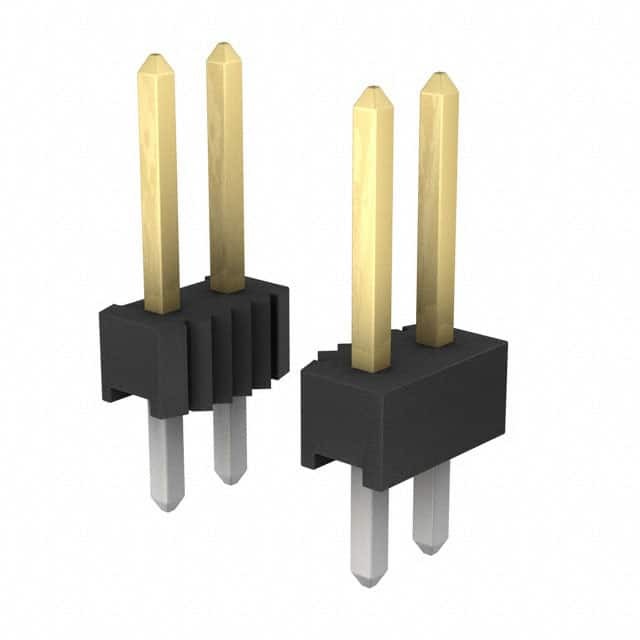

Same model may have multiple batches, images only for reference.
4-146251-0
Same model may have multiple batches, images only for reference.

4-146251-0

Part No 4-146251-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 80POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU Mod II
Package Bulk
Product Status Obsolete
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 80
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.318" (8.08mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.533" (13.55mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 5.00µin (0.127µm)
Contact Finish - Post Tin-Lead
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0µin (2.54µm)
Base Product Number 146251
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856863-4-146251-0
Ultra Librarian 3D Model Ultra Librarian 4-146251-0 CAD Model

Description

The 856863-4-146251-0 is a male pin header connector from TE Connectivity. TE Connectivity manufactures this.

  • Connector Type: Header, Male Pin
  • Series: AMPMODU Mod II
  • Number of Positions: 80
  • Connection Type: Board-to-Board or Cable
  • Pitch: 0.100 inches (2.54mm)
  • Contact Finish: Gold
  • Post Contact Finish: Tin-Lead
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Shrouded: No
  • Mounting Type: Through-Hole
  • Standard Package Quantity: 50 pieces
  • ECCN: EAR99
  • Current Rating: 3A
  • REACH: Affected
  • Base Product Number: 146251
  • Product Status: Obsolete
