Same model may have multiple batches, images only for reference.

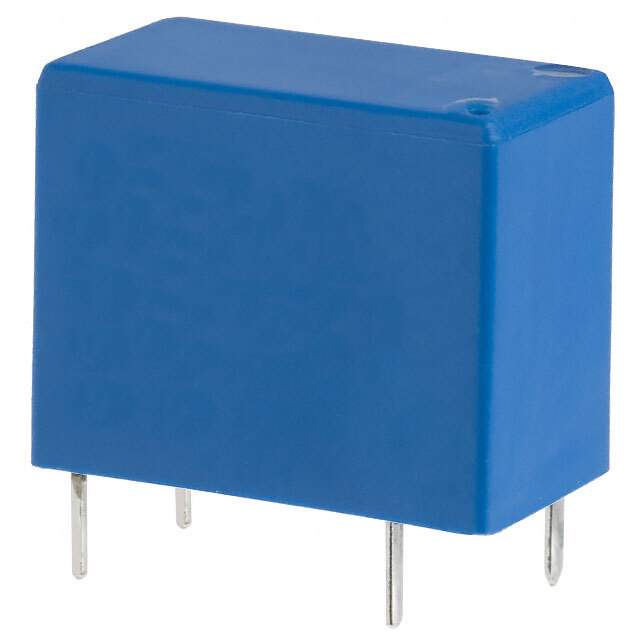

4-1419128-4 Real Image
Same model may have multiple batches, images only for reference.

4-1419128-4

Part No 4-1419128-4
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Power Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 37.5 mA
Coil Power 450 mW
Coil Resistance 320 Ω
Coil Type Non-Latching
Coil Voltage (DC) 12 V
Contact Current Rating 10 A
Contact Material Silver
Contact Voltage Rating (DC) 30 V
Current Rating 10 A
Depth 10.2 mm
ELV Non-Compliant
Height 14.7 mm
Lead Free Yes
Length 18.2 mm
Max Current Rating 10 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 30 V
Min Operating Temperature -30 °C
Mount PCB, Through Hole
Operate Time 10 ms
REACH SVHC Unknown
Relay Type General Purpose
Release Time 4 ms
RoHS Compliant
Switching Current 5 A
Termination PCB
Throw Configuration SPST
Voltage Rating (DC) 12 V
Weight 9 g
Width 10.2 mm
Win Source Part Number 1083111-4-1419128-4
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 4-1419128-4 CAD Model

Description

The TE Connectivity relay is a general-purpose relay that has a throw configuration of SPST. It has a coil voltage of 12VDC and a coil resistance of 320 Ω.

  • Throw Configuration: SPST
  • Coil Voltage: 12VDC
  • Coil Resistance: 320 Ω
  • Contact Current Rating: 10 A
  • Switching Current: 5 A
  • Contact Voltage Rating (DC): 30 V
  • Maximum Voltage Rating (AC): 250 V
  • Maximum Operating Temperature: 70 °C
  • Minimum Operating Temperature: -30 °C
  • Mounting Type: PCB
  • Packaging: Tape & Reel
  • Lead-Free: Yes
  • RoHS Compliant: Yes
