MCX-J-SMAJ TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

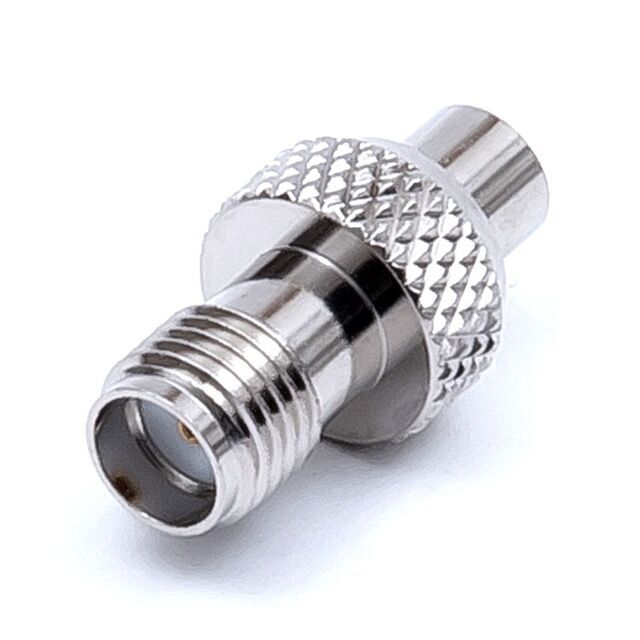

MCX-J-SMAJ

Part No MCX-J-SMAJ
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Adapters
Description Adapter Coaxial Connector MCX Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
Datasheet
MCX-J-SMAJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Adapter Type Jack to Jack
Conversion Type Between Series
Adapter Series SMA to MCX
Center Gender Female to Female
Convert From (Adapter End) MCX Jack, Female Socket
Convert To (Adapter End) SMA Jack, Female Socket
Impedance 50 Ohms
Style Straight
Mounting Type Free Hanging (In-Line)
Fastening Type Snap-On, Threaded
Frequency - Max 6GHz
Center Contact Plating Gold
Ultra Librarian 3D Model Ultra Librarian MCX-J-SMAJ CAD Model
