Same model may have multiple batches, images only for reference.

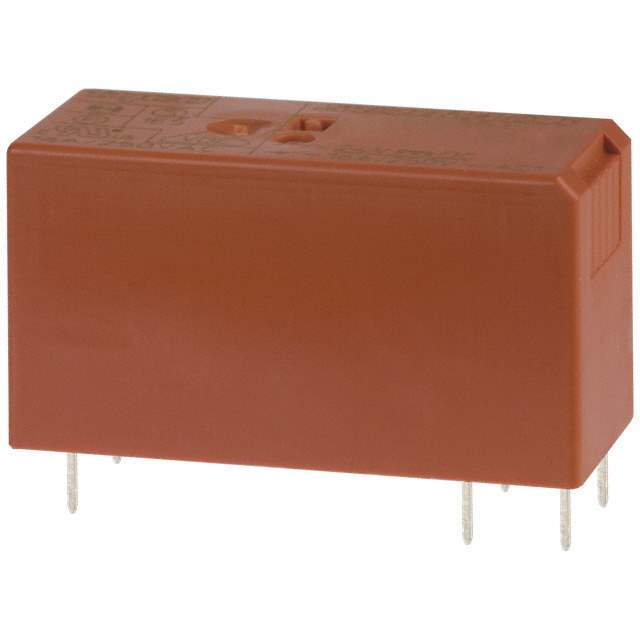

4-1393240-5 Real Image
Same model may have multiple batches, images only for reference.

4-1393240-5

Part No 4-1393240-5
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay SPST-NO 16A 12VDC 360Ohm Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 85 °C
Mounting SMD (SMT)
Case / Package DIP
Coil Current 33.3 mA
Coil Power 400 mW
Coil Resistance 360 Ω
Coil Type Non-Latching
Coil Voltage (DC) 12 V
Contact Current Rating 16 A
Contact Material Silver
Current Rating 16 A
Depth 12.7 mm
Dropout Voltage 1.2 V
ELV Compliant
Height 15.7 mm
Lead Free Yes
Length 29 mm
Max Current Rating 16 A
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 400 V
Min Operating Temperature -40 °C
Mount PCB, Through Hole
Number of Contacts 1
Number of Pins 8
Operate Time 8 ms
Packaging Carton
Radiation Hardening No
Ratings IP54
REACH SVHC Unknown
RoHS Compliant
Switching Capacity 4 kW
Switching Current 16 A
Termination PC Pin
Throw Configuration SPST
Voltage Rating (AC) 400 V
Width 29 mm
Win Source Part Number 1038576-4-1393240-5
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 4-1393240-5 CAD Model

Description

The 1393240-5 is a signal relay manufactured by TE Connectivity. It has a PC pin termination style and a silver contact material.

  • Current Rating: 16 A
  • Coil Resistance: 360 Ω
  • Coil Voltage (DC): 12 V
  • Coil Type: Non-Latching
  • Maximum Voltage Rating (AC): 400 V
  • Switching Capacity: 4 kW
  • Ambient Temperature Range: -40°C to 85°C
  • Mounting Type: PCB Mountable
  • Throw Configuration: SPST
  • Alternative Parts: G5LE1AE12DC, ALZ52F12, ALZ52B12, FTR-K1AK012T, 3-1419108-5, 3-1419108-6, RT334012
