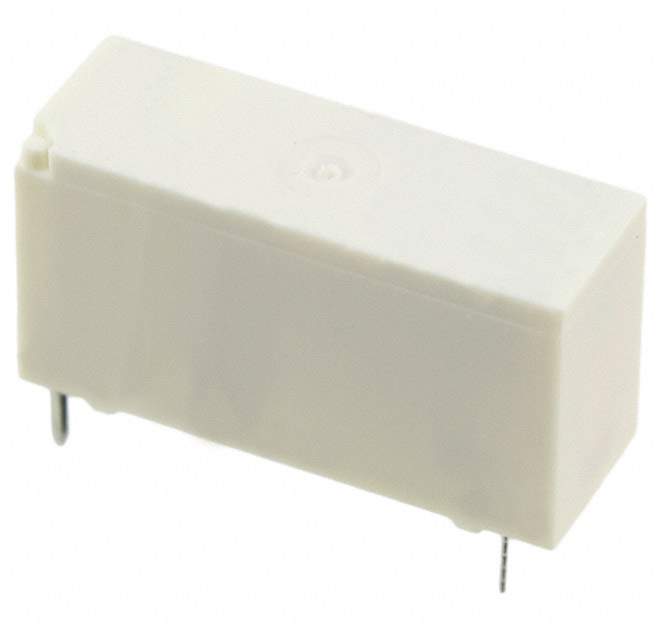

4-1393222-2 Real Image
Same model may have multiple batches, images only for reference.

4-1393222-2

Part No 4-1393222-2
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description Electromechanical Relay 24VDC 2.27KOhm 8A SPST-NO (28.6x10x15)mm THT Power Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, UL, VDE
Coil Current 10.57 mA
Coil Power 220 mW
Coil Resistance 2.27 kΩ
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 8 A
Contact Material Cadmium, Silver
Depth 10 mm
Dropout Voltage 2.4 V
ELV Non-Compliant
Height 15 mm
Lead Free Yes
Length 28.6 mm
Max Current Rating 8 A
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 400 V
Min Operating Temperature -40 °C
Mount PCB, Through Hole
Number of Pins 4
Operate Time 6 ms
Radiation Hardening No
Ratings IP67
Relay Type General Purpose
Release Time 5 ms
RoHS Compliant
Switching Capacity 2 kW
Termination PC Pin
Throw Configuration SPST
Voltage Rating (AC) 400 V
Voltage Rating (DC) 24 V
Win Source Part Number 1103595-4-1393222-2
Categories Power Relays,Over 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 4-1393222-2 CAD Model

Description

The 1103595-4-1393222-2 is a low popularity, compliant RoHS electronic component manufactured by TE Connectivity. It is a power relay with over 2 Amps and has a maximum current rating of 8 A.

  • Maximum Current Rating: 8 A
  • Coil Voltage (DC): 24 V
  • Coil Resistance: 2.27 kΩ
  • Mounting Type: PCB, Through Hole
  • Contact Material: Cadmium, Silver
  • Ratings: IP67
  • Approvals: CSA, UL, VDE
