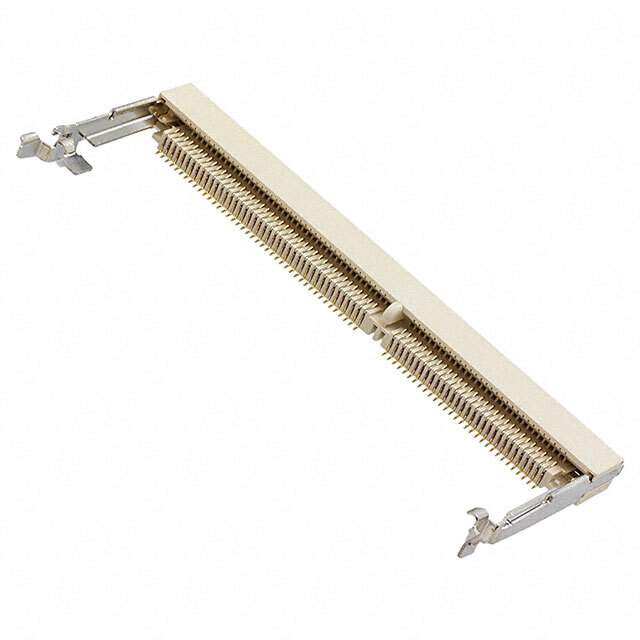

The TE Connectivity AMP Connectors 390113-1 inline module socket is a surface mount right-angle connector with a SODIMM connector style. The connector has 144 positions with board guide and latches features and a standard package of 200.

• Mounting: Surface mount
• Orientation: Right-angle
• Style: SODIMM
• Positions: 144
• Features: Board guide and latches
• Standard Package: 200
• Memory Type: SDRAM
• Contact Finish: Gold
• Contact Finish Thickness: 10.0μin (0.25μm)
• Contact Material: Copper alloy
• Mounting Feature: Normal, standard-top
• Operating Temperature Range: -55°C to 175°C (TJ)
• Cross-Reference Part Numbers: 390112-1, 390322-1, 6-390114-1, 1473006-4, 2013311-1, 2013287-11681975, and 390113-1
• ECCN: EAR99
• REACH Status: Vendor undefined
