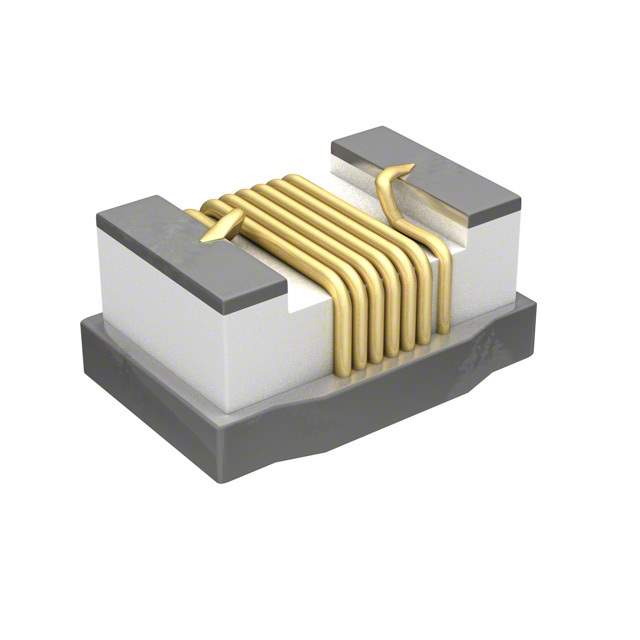

36501J24NJTDG Real Image
Same model may have multiple batches, images only for reference.

36501J24NJTDG

Part No 36501J24NJTDG
Manufacturer TE Connectivity
Catalog Fixed Inductors
Description FIXED IND 24NH 700MA 130MOHM SMD / 24 nH Unshielded Wirewound Inductor 700 mA 130mOhm Max Nonstandard
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TE Connectivity Passive Product
Series 3650, Sigma Inductors
Package Tape & Reel
Type Wirewound
Inductance 24 nH
Tolerance ±5%
Current Rating (Amps) 700 mA
Shielding Unshielded
DC Resistance (DCR) 130mOhm Max
Q @ Freq 36 @ 250MHz
Frequency - Self Resonant 2.8GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 250 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Supplier Device Package 0603 (1608 Metric)
Dimension 0.071" L x 0.044" W (1.80mm x 1.12mm)
Height - Seated (Max) 0.040" (1.02mm)
Base Product Number 36501
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8504.50.8000
Other Names 7-1624112-9,716241129,A103730TR,A103730CT,A103730DKR
Standard Package 2,000
Win Source Part Number 1066217-36501J24NJTDG
Ultra Librarian 3D Model Ultra Librarian 36501J24NJTDG CAD Model

Description

The 1066217-36501J24NJTDG is a wirewound fixed inductor that belongs to the Sigma Inductors series.

  • Shielding: Unshielded
  • Tolerance: ±5%
  • Package: Tape and Reel
  • Mounting: SMD (SMT)
  • Inductance: 24nH
  • Q @ Freq: 36 @ 250MHz
  • Frequency of Self-Resonant: 2.8GHz
  • DC Resistance (DCR): 130mOhm Max
  • Temperature Range: -40°C to 125°C
  • Dimensions: 0.071" L x 0.044" W (1.80mm x 1.12mm)
  • Package: Non-Standard
  • Standard Package: 2,000
