Same model may have multiple batches, images only for reference.

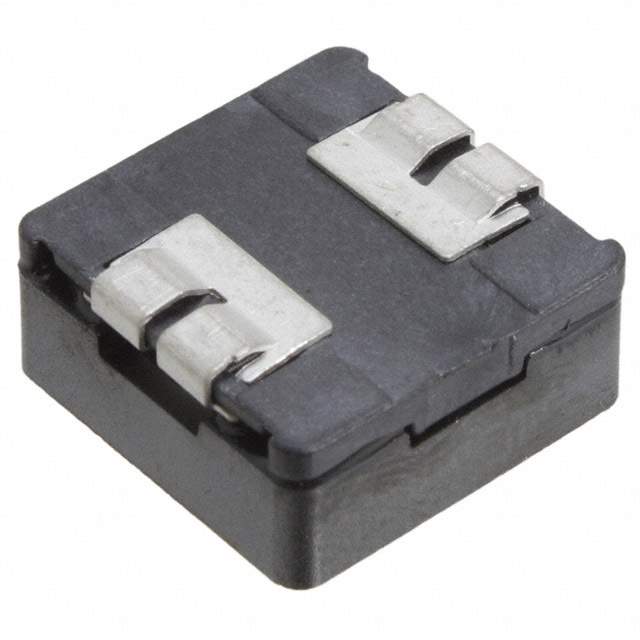

3631B330LL Real Image
Same model may have multiple batches, images only for reference.

3631B330LL

Part No 3631B330LL
Manufacturer TE Connectivity
Catalog Fixed Inductors
Description FIXED IND 33UH 1.9A 90 MOHM SMD / 33 µH Shielded Inductor 1.9 A 90mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr TE Connectivity Passive Product
Series 3631, Sigma Inductors
Package Tape & Reel
Material - Core Ferrite
Inductance 33 µH
Tolerance ±15%
Current Rating (Amps) 1.9 A
Shielding Shielded
DC Resistance (DCR) 90mOhm Max
Temperature Range - Operating -25°C ~ 105°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Max) 0.256" (6.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 1625812-9,A106109TR,A106109DKR,A106109CT,16258129,1625812-9-ND
Standard Package 600
Win Source Part Number 1039345-3631B330LL
Ultra Librarian 3D Model Ultra Librarian 3631B330LL CAD Model

Description

The 3631 Sigma Inductors series from TE Connectivity Passive Product is a fixed inductor that is designed to provide shielding to electronic components.

  • Inductance: 33 μH
  • Tolerance: ±15%
  • DC Resistance: 90mOhm max
  • Core Material: Ferrite
  • Height Seated (Max): 0.256" (6.50mm)
  • Mounting: SMD (SMT)
  • Temperature Range: -25°C to 105°C
  • Current Rating: 1.9A
  • Inductance Frequency-Test: 1 kHz
  • Standard Package: 600
  • REACH: Affected
  • ECCN: EAR99
