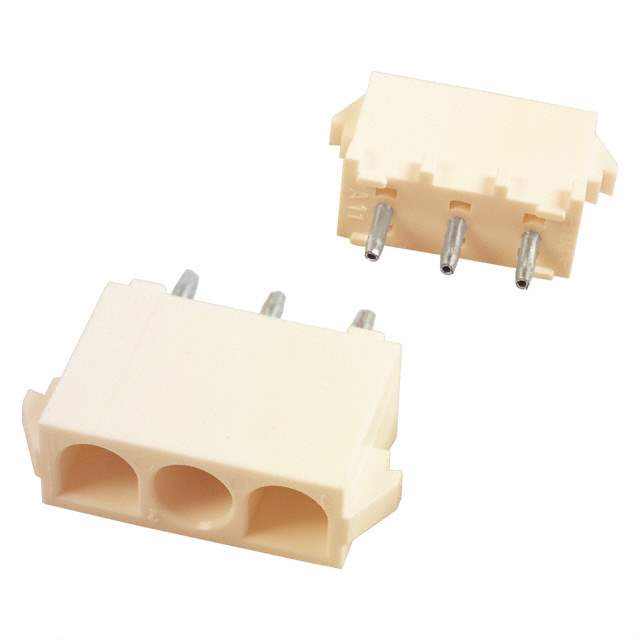

350583-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.215" (5.46mm)
Insulation Height 0.550" (13.97mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-2
Insulation Color Natural
Applications General Purpose
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807364-350583-1
Ultra Librarian 3D Model Ultra Librarian 350583-1 CAD Model

Description

The TE Connectivity AMP Connectors 807364-350583-1 is a through-hole header connector manufactured by TE Connectivity AMP Connectors.

  • Fastening Type: Locking Ramp
  • Positions: 3
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: 1, Shrouded-4 wall
  • Termination: Solder
  • Contact Material: Phosphor Bronze, Tin Finish
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: Natural
  • Pitch-Mating: 0.250" (6.35mm)
  • Contact Finish-Mating and Post: Tin
  • Contact Length-Post: 0.215" (5.46mm)
  • Insulation Height: 0.550" (13.97mm)
  • Contact Shape: Circular
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 100
