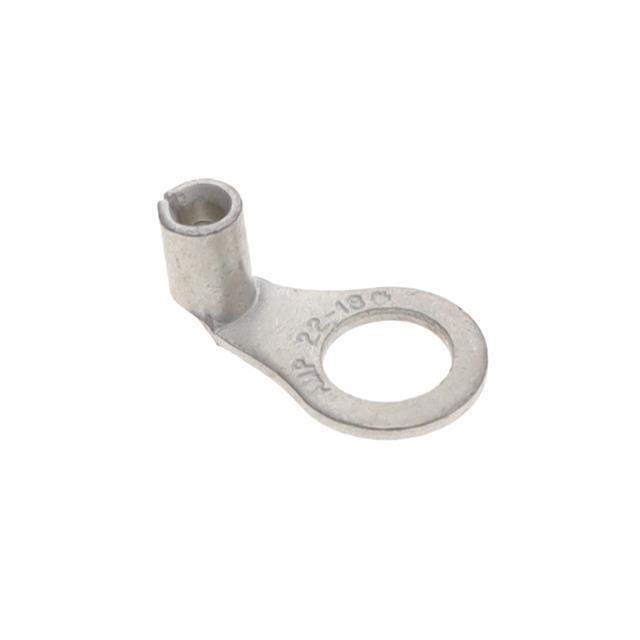

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Ring Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 10 Stud
Thickness 0.031" (0.79mm)
Mounting Free Hanging (In-Line), Right Angle
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number 3227
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Standard Package 1,000
Win Source Part Number 1333692-322768
Ultra Librarian 3D Model Ultra Librarian 322768 CAD Model

Description

TE Connectivity AMP Connectors presents a ring connector terminal with a stud/tab size of 10 stud.

  • Stud/Tab Size: 10 stud
  • Terminal Type: Circular
  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 16-22 AWG
  • Contact Material: Copper
  • Insulation: Non-Insulated
  • Thickness: 0.031" (0.79mm)
  • Packaging: Bulk
  • Mounting Style: Free Hanging (in-line), Right Angle
  • RoHS Compliant: Yes
