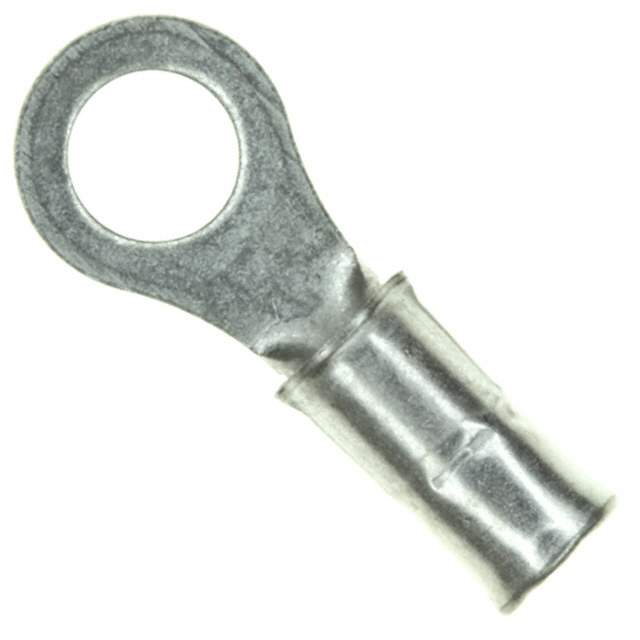

31270 Real Image
Same model may have multiple batches, images only for reference.

31270

Part No 31270
Manufacturer TE Connectivity
Catalog Terminals
Description CONN RING 16-22 AWG #8 D-GRIP / Ring Tongue Terminal 10-12AWG Copper 18.49mm Tin Loose
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Standard Package 1000
Category Connectors Interconnects
Family Terminals - Ring Connectors
Series Diamond Grip
Packaging Bulk
Terminal Type Circular
Stud/Tab Size 8 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.281" (7.14mm)
Length - Overall 0.728" (18.49mm)
Mounting Style Free Hanging (In-Line)
Termination Crimp
Wire Gauge 16-22 AWG
Insulation Non-Insulated
Features Serrated Termination
Contact Material Copper
Contact Finish Tin
Insulation Diameter 0.080" ~ 0.125" (2.03mm ~ 3.18mm)
Catalog DIAMOND GRIP Series
Win Source Part Number 075693-31270
Popularity Medium
Supply and Demand Status Balance
Family Name 31270
Introduction Date April 30, 2004
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 31270 CAD Model

Description

Product Overview

The 31270 electronic component is celebrated for its impressive robustness and efficiency in various applications. It is crafted to support complex system requirements with ease.

Key Features and Benefits

  • Reliable and durable
  • Excellent thermal management
  • Seamless integration
  • Broad compatibility range
  • Low operational costs

Applications

  • Data processing units
  • Broadcasting equipment
  • Telecommunication devices
  • Control systems
  • High-frequency applications

Incorporating the 31270 into your systems guarantees improved performance and reliability, meeting stringent operational standards.
