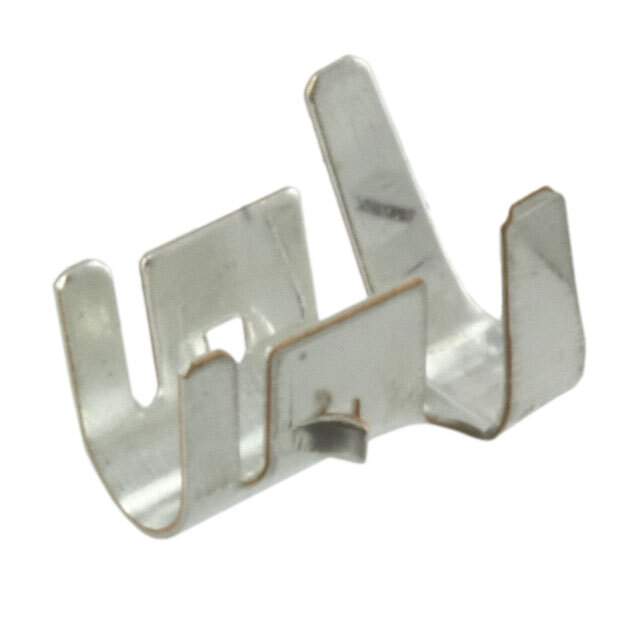

3-770060-1 Real Image
Same model may have multiple batches, images only for reference.

3-770060-1

Part No 3-770060-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN TERM WTB 14-18AWG TIN / WTB Tin Terminal Connector 14-18 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Wire to Board Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Through Board
Hole Diameter 0.125" (3.18mm)
Insulation Diameter 0.090" ~ 0.150" (2.29mm ~ 3.81mm)
Length - Overall 0.295" (7.49mm)
Wire Gauge 14-18 AWG
Contact Material Phosphor Bronze
Contact Finish Tin
Base Product Number 770060
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -3-770060-1-LSI,A100549TR,A100549CT,37700601,-3-770060-1-CSI,3-770060-1-ND,-3-770060-1-SI
Standard Package 3,000
Win Source Part Number 1333558-3-770060-1
Ultra Librarian 3D Model Ultra Librarian 3-770060-1 CAD Model

Description

The TE Connectivity AMP Connectors 1333558-3-770060-1 is a wire to board connector used to connect wires to a printed circuit board.

  • Package: Reel-TR
  • Contact Finish: Tin
  • Wire Gauge: 14-18 AWG
  • Contact Material: Phosphor Bronze
  • Length: 0.295" (7.49mm)
  • Insulation Diameter: 0.090" ~ 0.150" (2.29mm ~ 3.81mm)
  • Hole Diameter: 0.125" (3.18mm)
  • ECCN: EAR99
  • HTSUS: 8536.90.4000
