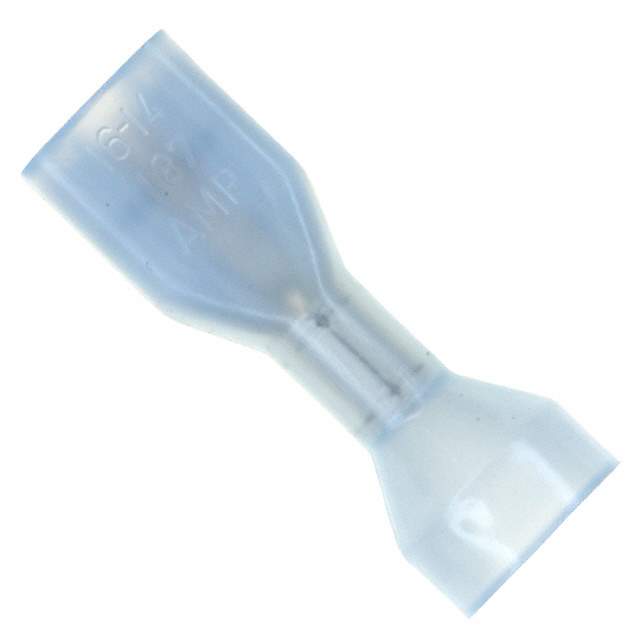

3-520150-2 Real Image
Same model may have multiple batches, images only for reference.

3-520150-2

Part No 3-520150-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-16AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Length - Overall 0.935" (23.75mm)
Termination Crimp
Wire Gauge 14-16 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Blue
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.260" (6.60mm)
Base Product Number 520150
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27814,2266-3-520150-2TR,3-520150-2-ND,35201502,A27814-ND,-3-520150-2-SI,A27815CT,A27815TR
Standard Package 2,000
Win Source Part Number 1333821-3-520150-2
Ultra Librarian 3D Model Ultra Librarian 3-520150-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333821-3-520150-2 is a female quick connect, quick disconnect connector that comes in a standard package of 2,000.

  • Termination: Crimp
  • Contact Finish: Tin
  • Contact Material: Brass
  • Overall Length: 0.935 inches
  • Insulation: Fully Insulated
  • Tab Width: 0.187 inches
  • Tab Thickness: 0.020 inches
  • Insulation Diameter: 0.260 inches
  • RoHS Compliant: Yes
  • MSL Level: 1
