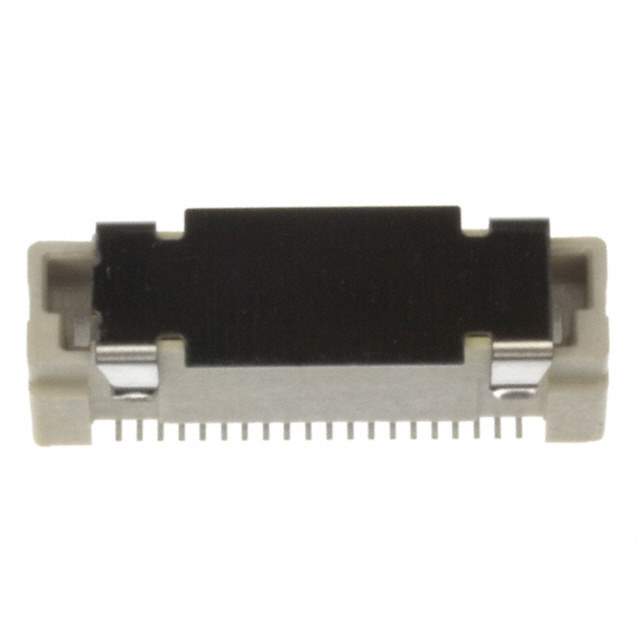

Part No 3-5177986-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PLUG 40POS SMD GOLD / Stacking Height Guide for Parallel Board-to-Board Applications
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Connector Type Plug, Center Strip Contacts
Number of Positions 40
Pitch 0.80mm
Number of Rows 2
Mounting Style SMD
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 8.00μin (0.203μm)
Mated Stacking Heights 8mm, 12mm, 16mm, 20mm
Height Above Board 0.309" (7.85mm)
Manufacturer Pack Quantity 600
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809619-3-5177986-1
Ultra Librarian 3D Model Ultra Librarian 3-5177986-1 CAD Model

Description

The TE Connectivity AMP Connectors 809619-3-5177986-1 is a 40-position plug with center strip contacts.

  • Pitch: 0.80mm
  • Mounting: SMD
  • Features: Board guides
  • Number of Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin (0.203μm)
  • Height Above Board: 0.309" (7.85mm)
  • Mating Stack Height: 8mm, 12mm, 16mm, 20mm
  • Manufacturer Pack Quantity: 600
  • MSL Level: 1 (Unlimited)
