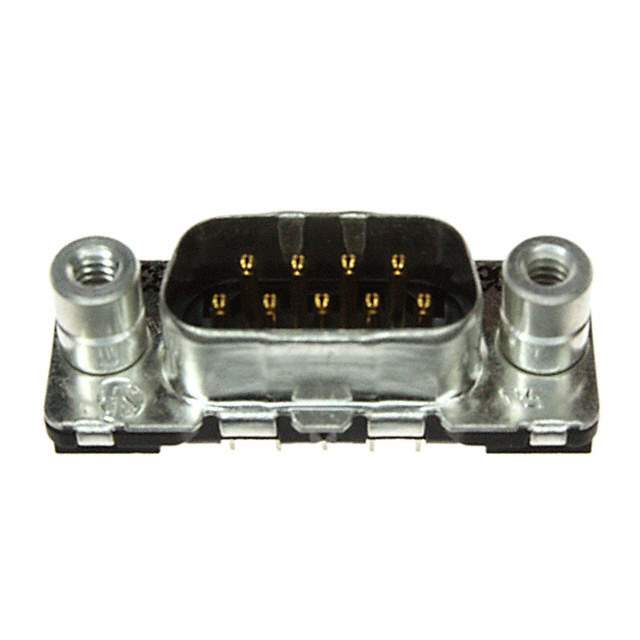

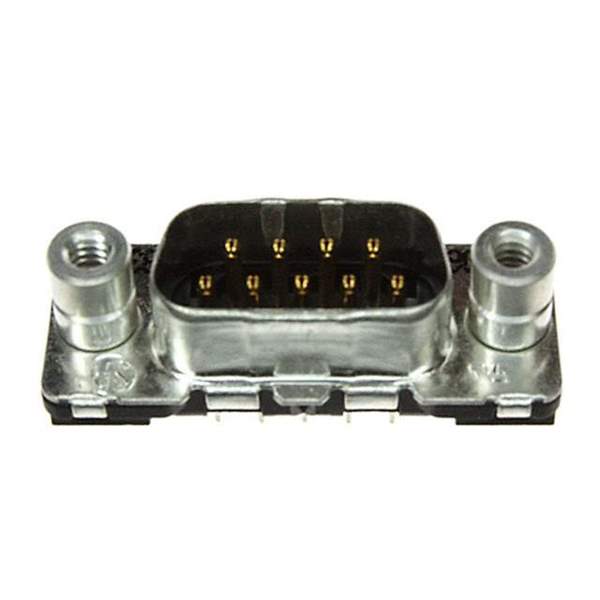

3-338309-2 Real Image
Same model may have multiple batches, images only for reference.

3-338309-2

Part No 3-338309-2
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Features Board Lock, Grounding Indents
Color Black
Dielectric Material Polyester, Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 338309
Other Names A35169,33383092
Standard Package 55
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294107-3-338309-2
Ultra Librarian 3D Model Ultra Librarian 3-338309-2 CAD Model

Description

The 1294107-3-338309-2 is a D-sub connector plug with a male pin contact type.

  • Connector Type: D-sub
  • Contact Type: Plug, Male Pin
  • Positions: 9-Position Loaded
  • Pitch: -
  • Mounting Style: Through-Hole
  • Dielectric Material: Polyester and Glass-Filled
  • Operating Temperature Range: -55°C to 105°C
  • Contact Finish: Gold
  • Color: Black
  • Package: Tray
