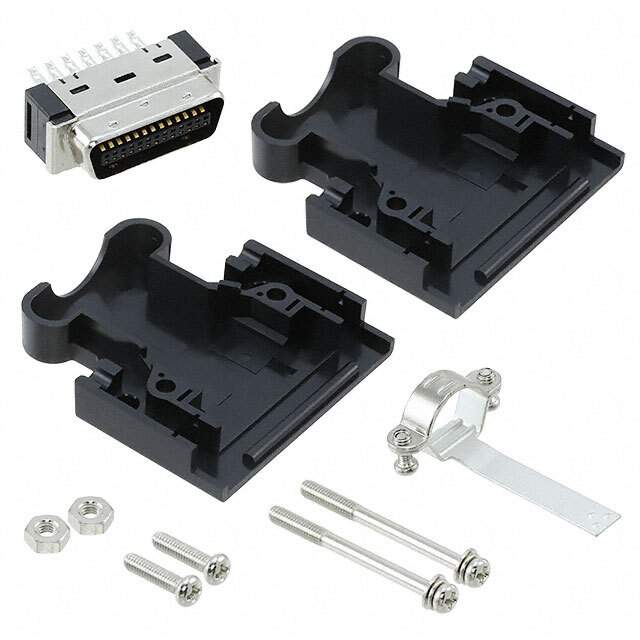

3-2232346-1 Real Image
Same model may have multiple batches, images only for reference.

3-2232346-1

Part No 3-2232346-1
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description SCSI .050 PLUG ASS'Y 26P  /  26 Position Plug Connector SCSI Free Hanging (In-Line) Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Shaped Connectors - Centronics
Mfr TE Connectivity AMP Connectors
Series SCSI
Package Tray
Connector Style Center Strip Contacts
Connector Type Plug
Number of Positions 26
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Type SCSI
Features Backshell
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Base Product Number 2232346
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Names -3-2232346-1-CSI,-3-2232346-1-SI
Standard Package 168
Win Source Part Number 1013576-3-2232346-1
Ultra Librarian 3D Model Ultra Librarian 3-2232346-1 CAD Model

Description

This electronic component is a connector with a Win Source Part Number of 1013576-3-2232346-1.

  • Category: D-Shaped Connectors - Centronics
  • Series: SCSI
  • Connector Type: plug
  • Positions: 26
  • Rows: 2
  • Termination: solder cup
  • Contact Finish: gold
  • Contact Finish Thickness: 10.0µin (0.25µm)
  • Package: tray
  • Contacts: center strip
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Material Flammability Rating: UL94 V-0
  • Shell Material: steel
  • Shell Finish: tin plated
  • Temperature Range: -55°C to 105°C
  • Mounting: through hole, right angle
