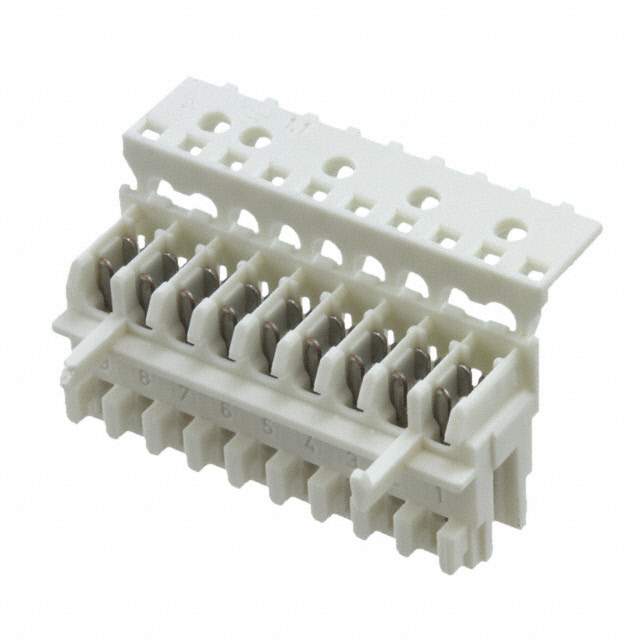

3-1534796-9 Real Image
Same model may have multiple batches, images only for reference.

3-1534796-9

Part No 3-1534796-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 9POS IDC 22-24AWG TIN / 9 Position Rectangular Receptacle Connector IDC Tin 22-24 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Free Hanging, Panel Mount
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Receptacle
Contact Type Female Blade Socket
Number of Positions 9
Pitch 0.098" (2.50mm)
Number of Rows 1
Mounting Free Hanging (In-Line), Right Angle
Cable Termination IDC
Wire Type Discrete
Wire Gauge 22-24 AWG
Features Mates to PCB
Contact Finish Tin
Color Natural
Base Product Number 1534796
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number -3-1534796-9-CSI,-3-1534796-9-SI,2266-3-1534796-9,A118448,-3-1534796-9-LSI
Standard Package 1,540
Win Source Part Number 1334035-3-1534796-9
Ultra Librarian 3D Model Ultra Librarian 3-1534796-9 CAD Model

Description

The TE Connectivity AMP Connectors Rectangular Connector is a high-quality connector designed to be used in free hanging, panel mount applications.

  • Win Source Part Number: 1334035-3-1534796-9
  • Mounting Applications: Free Hanging, Panel Mount
  • Positions: 9
  • Pitch: 0.098" (2.50mm)
  • Color: Natural
  • Mate To: PCB
  • Connector Type: Receptacle
  • Contact Type: Female Blade Socket
  • Number of Rows: 1
  • Row Spacing: -
  • Contact Finish: Tin
  • Wire Gauge: 22-24 AWG
  • Cable Termination: IDC
  • Wire Type: Discrete
  • Package: Tray
  • Standard Package: 1,540
