Same model may have multiple batches, images only for reference.

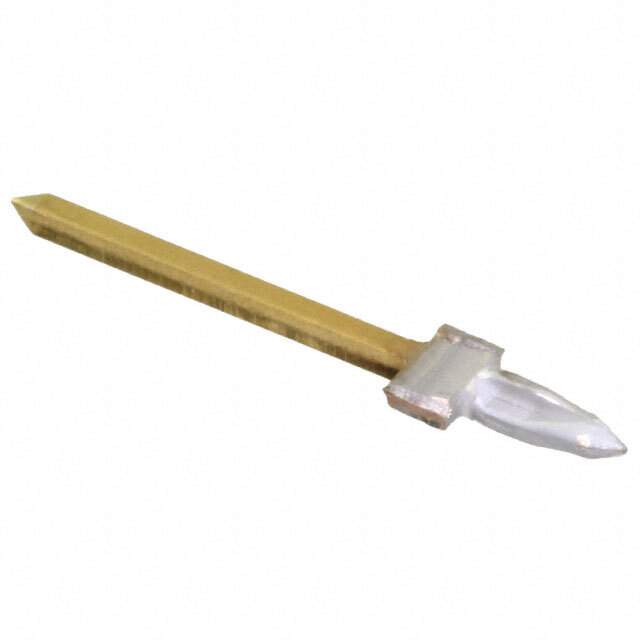

1-928776-5 Real Image
Same model may have multiple batches, images only for reference.

1-928776-5

Part No 1-928776-5
Manufacturer TE Connectivity
Catalog Terminals
Description CONN PC PIN SQUARE 0.025 GOLD / Single Post Terminal Connector Through Hole Gold 0.025" (0.64mm) Square
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>PC Pin, Single Post Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Single Post
Terminal Style Pin Retention
Pin Size - Above Flange 0.025" (0.64mm) Square
Pin Size - Below Flange 0.025" (0.64mm) Square
Length - Overall 0.394" (10.00mm)
Mounting Hole Diameter 0.035" (0.89mm)
Mounting Through Hole
Termination Press-Fit
Insulation Non-Insulated
Board Thickness 0.063" (1.60mm)
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 47.2µin (1.20µm)
Base Product Number 928776
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 1-928776-5-ND,A122998TR,2266-1-928776-5TR,A122998CT
Standard Package 50,000
Win Source Part Number 1333804-1-928776-5
Ultra Librarian 3D Model Ultra Librarian 1-928776-5 CAD Model

Description

The TE Connectivity AMP Connectors 1333804-1-928776-5 is a single post connector that is used in various connectors and interconnects.

  • Packaging: Reel - TR
  • Mounting Technology: Press-Fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 47.2μin (1.20μm)
  • Contact Material: Phosphor Bronze
  • Insulation: Non-Insulated
  • Standard Package: 50,000
  • Mounting: Through-Hole
