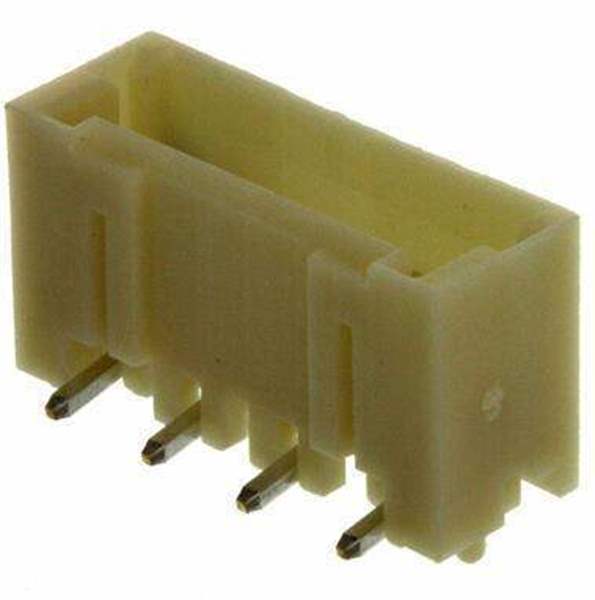

292230-7 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

292230-7

Part No 292230-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD 7POS 1.5MM
Datasheet
292230-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Part Status Header
Contact Type Male Pin
Connector Type Header
Pitch - Mating 0.059" (1.50mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Insulation Height 0.272" (6.91mm)
Contact Finish - Mating Tin
Insulation Material Polyamide (PA), Nylon, Glass Filled
Win Source Part Number WS1307821-292230-7
Ultra Librarian 3D Model Ultra Librarian 292230-7 CAD Model

Description

PCB Mount Header, Vertical, Wire-to-Board, 7 Position, 1.5 mm [. 059 in] Centerline, Fully Shrouded, Tin, Surface Mount, Signal, Natural, AMP Mini CT
