Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series Mini CT
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.193" (4.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Gray
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC
Applications General Purpose
Base Product Number 292206
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A98668,-292206-3-SI
Standard Package 2,100
Win Source Part Number 1230716-292206-3
Ultra Librarian 3D Model Ultra Librarian 292206-3 CAD Model

Description

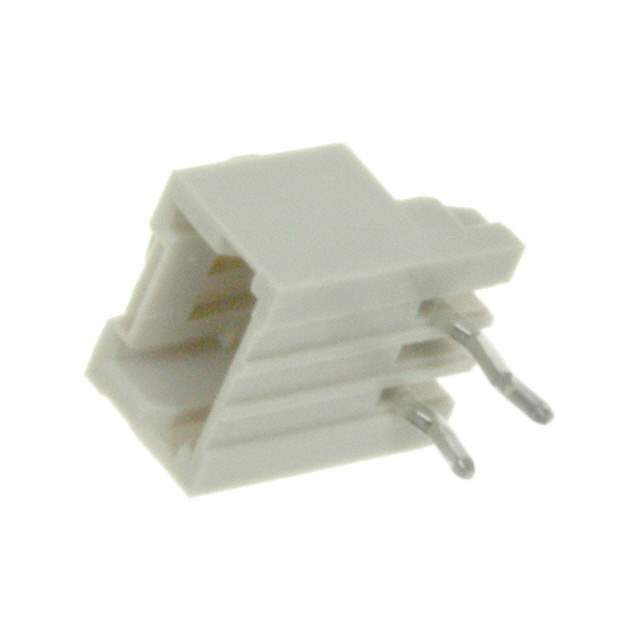

The TE Connectivity Mini CT 292206-3 is a 3-position header connector used in board to cable/wire applications.

  • Contact Shape: Square
  • Contact Type: Male Pin
  • Connector Material: Brass
  • Voltage Rating: 50VAC
  • Mounting Type: Through-Hole, Right-Angle
  • Shrouded: Yes, 4 Walls
  • Temperature Range: -30°C to 105°C
