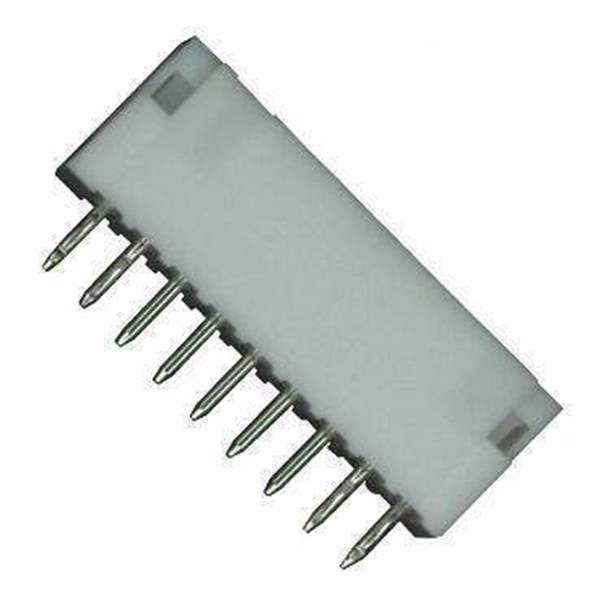

292132-9 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Packaging Bulk
Part Status Active
Contact Type Male Pin
Connector Type Header
Contact Type Male Pin
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.165" (4.20mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.358" (9.09mm)
Win Source Part Number WS1307804-292132-9
Ultra Librarian 3D Model Ultra Librarian 292132-9 CAD Model

Description

Connector Header Through Hole 9 position 0.079" (2.00mm)
