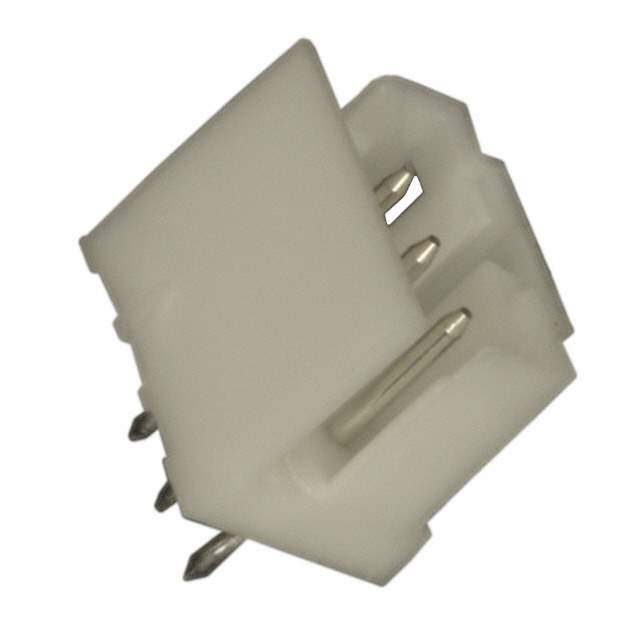

292132-3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.165" (4.20mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.358" (9.09mm)
Insulation Height 0.268" (6.80mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Base Product Number 292132
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A98778,-292132-3-SI,2921323,-292132-3-CSI
Standard Package 1,000
Win Source Part Number 1332647-292132-3
Ultra Librarian 3D Model Ultra Librarian 292132-3 CAD Model

Description

The TE Connectivity AMP Connectors 1332647-292132-3 is a male pin header connector that is part of the Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins family. It is designed for general-purpose applications, has a bulk packaging, and has three positions. The 1332647-292132-3 has a kinked pin, solder termination, and a detent lock fastening type. It has a medium popularity in the market and is ROHS3 compliant.
