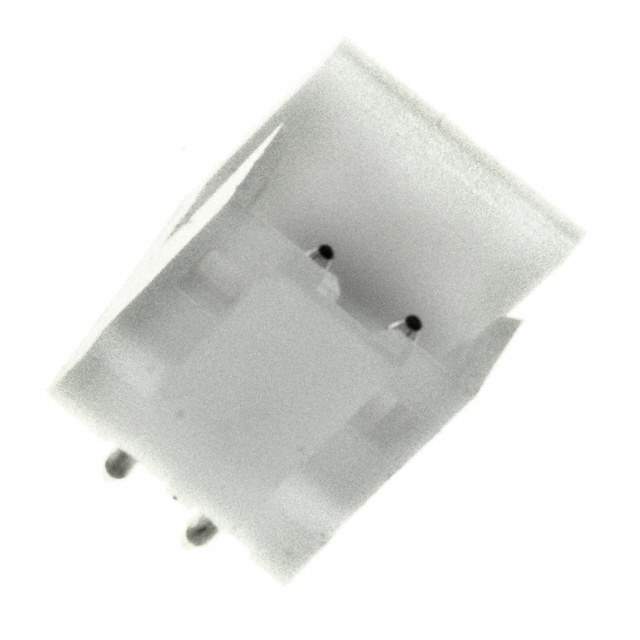

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.165" (4.20mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.358" (9.09mm)
Insulation Height 0.268" (6.80mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Win Source Part Number 1003673-292132-2
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 292132-2 CAD Model

Description

The TE Connectivity AMP Connectors Header is a through-hole connector that features a detent lock fastening type and a shrouded design with 4 walls.

  • Mounting Type: Through Hole
  • Fastening Type: Detent Lock
  • Design: Shrouded (4 Walls)
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: Natural
  • Connector Type: Header
  • Contact Type: Male Pin
  • Contact Shape: Circular
  • Contact Finish: Tin
  • Mating Pitch: 0.079" (2.00mm)
  • Voltage Rating: 125VAC
  • Material Flammability Rating: UL94 V-0
  • Number of Positions: 2
  • Number of Rows: 1
  • Termination: Kinked Pin, Solder
  • Contact Length (Post): 0.126" (3.20mm)
  • Contact Length (Mating): 0.165" (4.20mm)
  • Overall Contact Length: 0.358" (9.09mm)
