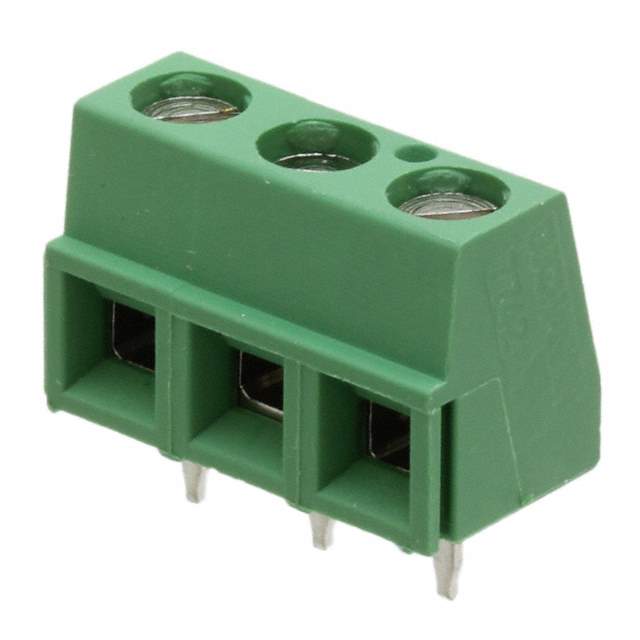

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Number of Levels 1
Positions Per Level 3
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Current 13.5 A
Voltage 300 V
Wire Gauge 16-28 AWG
Mounting Type Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA66) , Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated
Screw Material - Plating Brass - Nickel Plated
Torque - Screw 0.68 Nm (6 Lb-In)
Screw Thread M3
Base Product Number 282837
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1348611-282837-3
Ultra Librarian 3D Model Ultra Librarian 282837-3 CAD Model

Description

The 1348611-282837-3 is a green-colored terminal block manufactured by TE Connectivity AMP Connectors.

  • Color: green
  • Pitch: 0.200" (5.08mm)
  • Features: interlocking (side)
  • Package: bulk
  • Wire Gauge: 16-28 AWG
  • Voltage: 300 V
  • Standard Package: 200
  • Current: 13.5 A
  • Mating Orientation: horizontal with board
  • Wire Termination: screw - rising cage clamp
  • Contact Material Plating: brass - tin plated
  • Clamp Material Plating: brass - nickel plated
  • Screw Material Plating: brass - nickel plated
  • Screw Torque: 0.68 Nm (6 Lb-In)
  • Screw Thread: M3
  • Mounting Type: through hole
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
