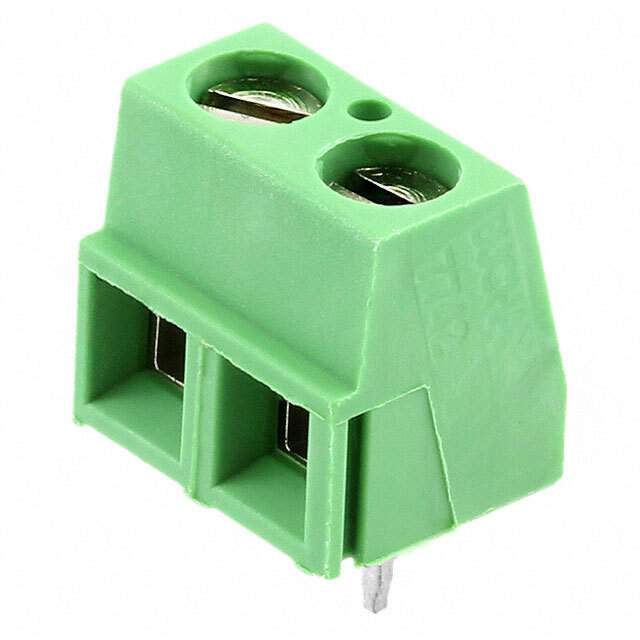

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr TE Connectivity AMP Connectors
Series Buchanan
Package Bulk
Number of Levels 1
Positions Per Level 2
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Current 13.5 A
Voltage 300 V
Wire Gauge 16-28 AWG
Mounting Type Through Hole
Wire Termination Screw - Rising Cage Clamp
Features Interlocking (Side)
Color Green
Housing Material Polyamide (PA66) , Nylon 6/6
Contact Material - Plating Brass - Tin Plated
Clamp Material - Plating Brass - Nickel Plated
Screw Material - Plating Brass - Nickel Plated
Torque - Screw 0.68 Nm (6 Lb-In)
Screw Thread M3
Base Product Number 282837
Standard Package 300
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1336758-282837-2
Ultra Librarian 3D Model Ultra Librarian 282837-2 CAD Model

Description

The 1336758-282837-2 is a connector, interconnect terminal block with wire to board functionality.

  • Product Type: Terminal Block
  • Functionality: Wire to Board
  • Series: Buchanan
  • Color: Green
  • Features: Interlocking Side
  • Wire Gauge (AWG): 16-28
  • Voltage: 300V
  • Current: 13.5A
  • Screw Thread: M3
  • Torque (Screw): 0.68 Nm (6 Lb-In)
  • Mounting Type: Through Hole
  • Supply and Demand Status: Sufficient
