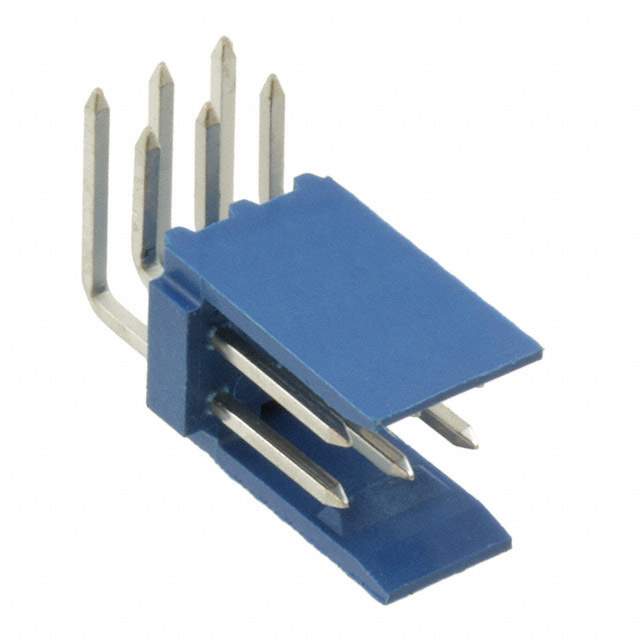

281742-3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series HE13/HE14
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.276" (7.00mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.300" (7.62mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Temperature Range - Operating -40°C ~ 100°C
Material Flammability Rating UL94 V-0
Insulation Color Blue
Applications General Purpose
Base Product Number 281742
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -281742-3-SI,2817423,2266-281742-3,281742-3-ND,A106697
Standard Package 500
Win Source Part Number 1205378-281742-3
Ultra Librarian 3D Model Ultra Librarian 281742-3 CAD Model

Description

The HE13/HE14 series by TE Connectivity AMP Connectors offers a 6 position header with male pins and a pitch of 0.100" (2.54mm).

  • Positions: 6
  • Connector Type: Header, Male Pins
  • Pitch: 0.100" (2.54mm)
  • Operating Temperature: -40°C to 100°C
  • Mounting Type: Through Hole, Right Angle
  • Contact Material: Phosphor Bronze
  • Contact Finish - Mating: Tin
  • Insulation Material: Thermoplastic
  • Insulation Color: Blue
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS: 8536.69.4040
  • Other Names: 281742-3
  • Base Product Number: 281742
  • Package: Bulk
  • Quantity: 500
  • Shrouding: Shrouded - 2 Wall
  • Row Spacing - Mating: 0.100" (2.54mm)
