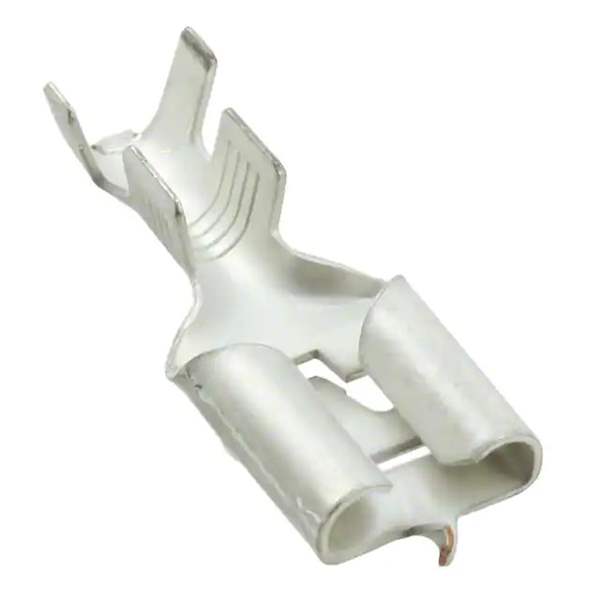

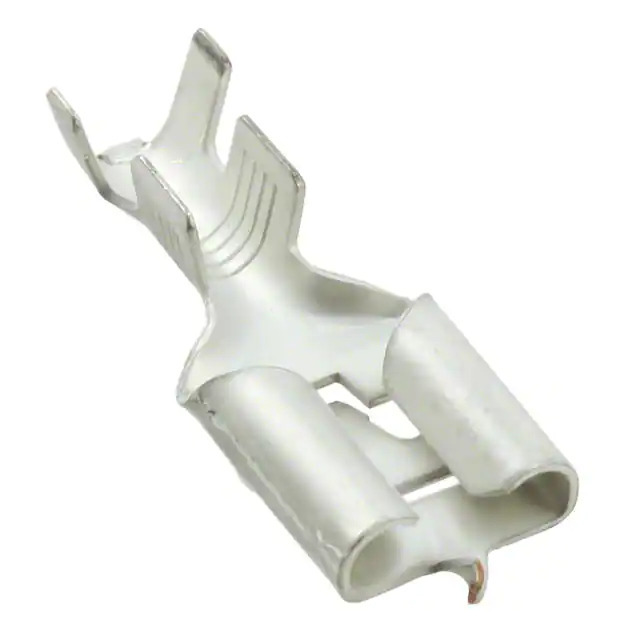

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.375" (9.53mm)
Tab Thickness 0.047" (1.19mm)
Tab Length -
Length - Overall 1.102" (27.99mm)
Termination Crimp
Wire Gauge 7-10 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.197" ~ 0.275" (5.00mm ~ 6.99mm)
Base Product Number 280755
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365112-280755-2
Ultra Librarian 3D Model Ultra Librarian 280755-2 CAD Model

Description

The TE Connectivity AMP Connectors Quick Connects and Quick Disconnect Connectors are a reliable and efficient solution for various electronic applications.

  • MSL: 1
  • Manufacturer: TE Connectivity AMP Connectors
  • Series: Fastin-Faston
  • Package: Tape & Reel
  • Product Status: Active
  • Base Product Number: 280755
  • HTSUS: 8536.90.4000
  • REACH: REACH unaffected
  • ECCN: EAR99
