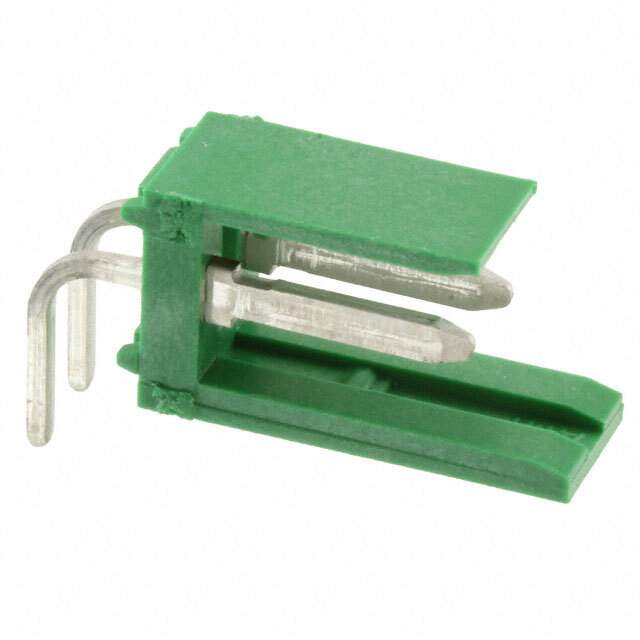

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod I
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 2 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.394" (10.00mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.346" (8.80mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polycarbonate, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Green
Base Product Number 280615
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names A106689,280615-1-ND,2266-280615-1
Standard Package 1,000
Win Source Part Number 1218308-280615-1
Ultra Librarian 3D Model Ultra Librarian 280615-1 CAD Model

Description

The 1218308-280615-1 is a 2-position male pin header connector from TE Connectivity AMP Connectors, part of the AMPMODU Mod I series.

  • Application: board-to-board or cable-to-board
  • Design: shrouded 2-wall
  • Insulation Material: polycarbonate, glass-filled
  • Contact Material: brass
  • Pitch: 0.156 inches (3.96mm)
  • Termination: detent lock
  • Contact Finish: tin
  • Insulation Color: green
  • Flammability Rating: UL94 V-0
  • Package: bulk
  • Alternative Part: 2806151
