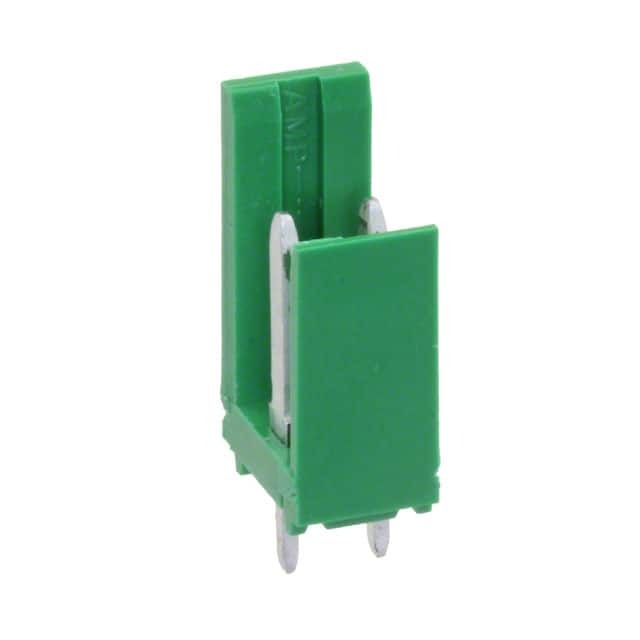

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPMODU Mod I
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 2 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.394" (10.00mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.642" (16.30mm)
Insulation Height 0.913" (23.20mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polycarbonate, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Green
Base Product Number 280609
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 906133-280609-1
Ultra Librarian 3D Model Ultra Librarian 280609-1 CAD Model

Description

The 906133-280609-1 is a male pin header connector from TE Connectivity.

  • Series: AMPMODU Mod I
  • Positions: 2-position
  • Contact Material: Brass
  • Fastening Type: Detent lock
  • Mounting: Through-hole
  • Package: Bulk (1,000 pieces)
  • Application: Board-to-board or cable connections
  • Pitch: 0.156" (3.96mm)
  • Contact Finish: Tin
  • Insulation Color: Green
  • Design: Shrouded 2-wall
  • Status: Active
