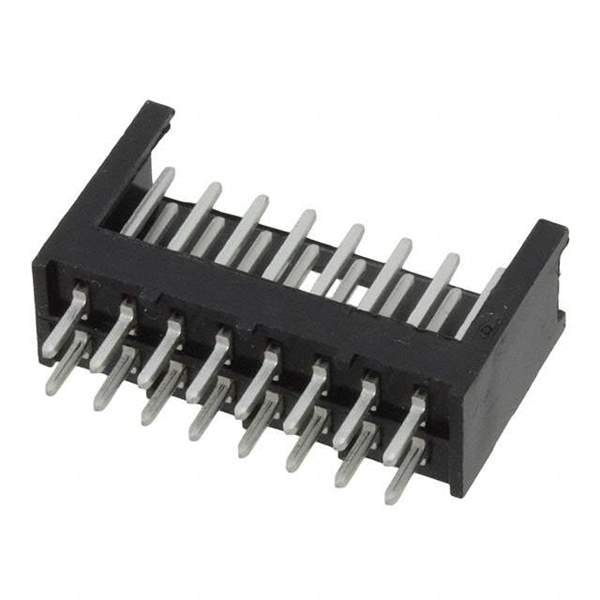

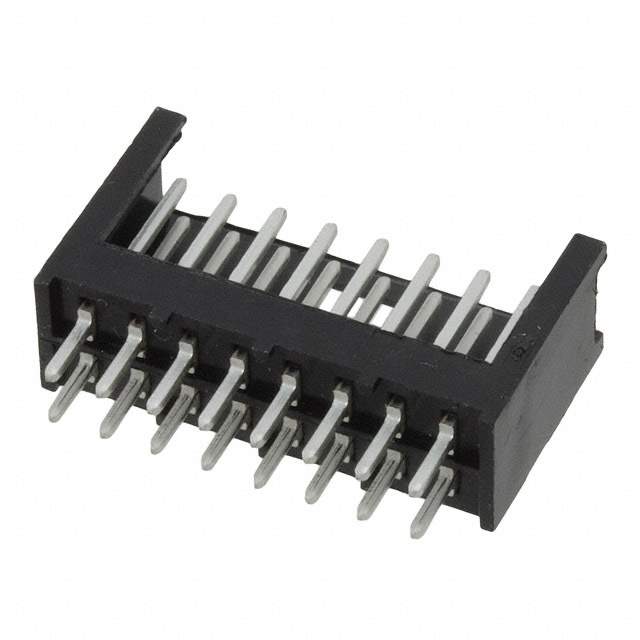

280385-1 Real Image
Same model may have multiple batches, images only for reference.

280385-1

Part No 280385-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod II
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.260" (6.60mm)
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length 0.563" (14.30mm)
Insulation Height 0.496" (12.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1µin (3.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Temperature Range - Operating -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 40V
Contact Finish Thickness - Post 118.1µin (3.00µm)
Base Product Number 280385
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 280385-1-ND,2803851,-280385-1-SI,A106682,-280385-1-LSI
Standard Package 500
Win Source Part Number 1221147-280385-1
Ultra Librarian 3D Model Ultra Librarian 280385-1 CAD Model

Description

The 280385-1 is a male pin header from TE Connectivity AMP Connectors.

  • GPTDescription: It belongs to the AMPMODU Mod II series and has 16 number of positions loaded.
  • GPTDescription: The contact finish - mating is tin with a contact finish thickness - mating of 118.1μin (3.00μm).
  • GPTDescription: The current rating (Amps) is 3A and the temperature range - operating is -40°C ~ 80°C.
  • GPTDescription: The Win Source Part Number for this header is 1221147-280385-1.
