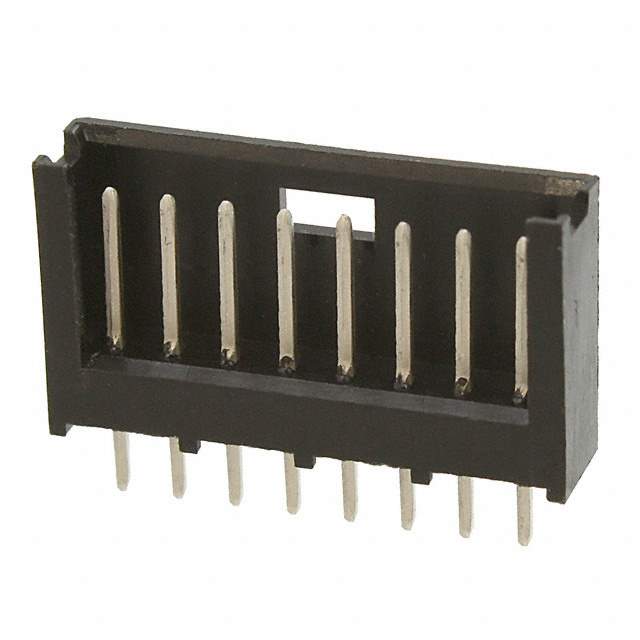

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Cut Reel
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Board or Cable
Shrouding Shrouded - 3 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.260" (6.60mm)
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length 0.563" (14.30mm)
Insulation Height 0.496" (12.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Insulation Material Thermoplastic
Temperature Range - Operating -40°C to 80°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Voltage Rating 40V
Contact Finish Thickness - Post 98.4μin (2.5μm)
Win Source Part Number 1003641-280373-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 280373-2 CAD Model

Description

The TE Connectivity AMP Connectors 1003641-280373-2 is an active header connector.

  • Pitch: 2.54mm
  • Connector Style: board to board or cable
  • Rows: 1
  • Positions: 8
  • Contact Type: male pin
  • Shrouded: 3 walls
  • Mounting: through hole
  • Fastening: detent lock
  • Contact Finish (Mating): gold, 15µin (0.38µm)
  • Contact Finish (Post): tin, 98.4µin (2.5µm)
  • Voltage Rating: 40V
  • Current Rating: 3A
  • Temperature Range: -40°C to 80°C
  • Category: Connectors and Interconnects
  • Popularity: medium
