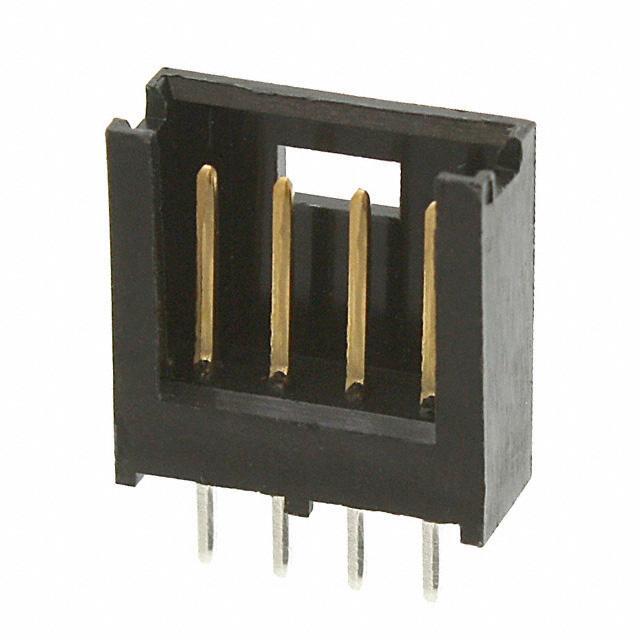

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPMODU Mod II
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Shrouded - 3 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.260" (6.60mm)
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length 0.563" (14.30mm)
Insulation Height 0.496" (12.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Thermoplastic
Operating Temperature Range -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Voltage Rating 40V
Contact Finish Thickness - Post 98.4μin (2.5μm)
Win Source Part Number 762052-280371-2
Popularity Medium
Supply and Demand Status Balance
Family Name 280371
Introduction Date January 22, 2001
ECCN EAR99
Country of Origin Italy, Poland
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 280371-2 CAD Model

Description

The TE Connectivity AMP Connectors 280371-2 is a 4-position AMPMODU Mod II header connector manufactured by TE Connectivity AMP Connectors.

  • Pitch: 0.100" (2.54mm)
  • Mounting Type: Through hole
  • Operating Temperature Range: -40°C to 80°C
  • Voltage Rating: 40V
  • Current Rating: 3A
  • Insulation Material: Thermoplastic
  • Material Flammability Rating: UL94 V-0
  • Family: 280371
  • Halogen-Free: No
  • Alternative Parts: 280371-1
  • Supply and Demand Status: Balanced
